Mfr Part #:

691352510002

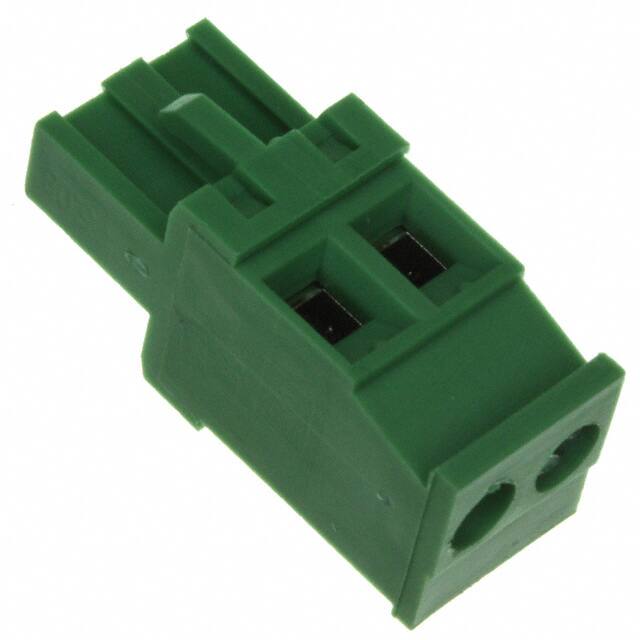

2-position terminal block plug with 5.08mm pitch, female sockets, screw termination with leaf spring and wire guard. Rated for 15A (cULus) / 17A (VDE) at 300VAC.

✓ Total Stock: 18 pcs

$ Price Range: $1.16 - $1.43

691352510002 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	18 pcs On Request	18 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

691352510002 Description

Short technical summary and product information.

This terminal block plug is part of the Würth Elektronik WR-TBL series 352. It features a 2-position female socket configuration with a 5.08mm pitch. The plug is designed for free hanging (in-line) mounting with horizontal cable entry and includes retention latches on the wire side for secure connection.

Electrically, the plug is rated for 15A under cULus standards and 17A under VDE standards at 300VAC. Withstanding voltage is 1.6kV (cULus) and 2.5kV (VDE), with a maximum contact resistance of 20mOhm.

Mechanically, it accepts 24-12 AWG solid and stranded wire (0.205-3.31 mm²) with a strip length of 6-7mm. The screw termination uses a leaf spring and wire guard, with a torque specification of 3.5 lb-in (0.4 Nm) and M3 screw size. The insulator is made of green PA66 with UL94 V-0 flammability rating. The metal housing is brass (CuZn), the screw is steel with zinc plating, and the wire guard is phosphor bronze with tin plating. Operating temperature range is -40°C to 105°C.

Packaging is in boxes. The product is RoHS and lead-free compliant as stated in the datasheet. Suitable for general electronics applications requiring field wiring of terminal blocks.

691352510002 Quick Information

Product Type: Terminal Block Plug

Series: 352

Canonical Name: Terminal Block Plug, Female Sockets, 2 Positions, 5.08mm Pitch, 15A/17A, 300VAC, Screw Termination

Subcategory: Headers, Plugs and Sockets

691352510002 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Non-Compliant

Lead Free: Lead Free

691352510002 Estimated Pricing

Qty	Low	High
1+	$1.43	$1.43
10+	$1.25	$1.25
50+	$1.16	$1.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

691352510002 Features

2-position plug with 5.08mm pitch.
Female socket type with screw termination.
Rated for 15A (cULus) and 17A (VDE) at 300VAC.
Accepts 24-12 AWG solid and stranded wire.
Free hanging (in-line) mounting with retention latches.

691352510002 Applications

Used for field wiring of terminal blocks in control panels.
Suitable for industrial automation and power distribution.
Ideal for wire-to-board connections in general electronics.
Common in building automation and HVAC systems.

691352510002 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this terminal block plug have?

2 positions.

What is the pitch of this terminal block plug?

5.08mm.

What is the current rating of this plug?

15 A (cULus) and 17 A (VDE).

What is the voltage rating?

300 VAC (both cULus and VDE).

What is the mounting type?

Free hanging (in-line).

What wire gauge sizes are compatible?

24-12 AWG both solid and stranded.

What is the termination style?

Screw - Leaf Spring, Wire Guard.

Category	Headers, Plugs and Sockets
Manufacturer Name	Würth Elektronik
Color	Green
Contact Resistance	20 mOhm
Current	15 A
Features	Retention Latches (Wire Side)
Housing Material	Brass (CuZn)
Insulator Material	PA66
Lead Spacing	5.08 mm
Lead Style	Screw - Leaf Spring, Wire Guard
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature	-40°C ~ 105°C
Pitch	5.08mm
Plug Wire Entry	90°
Positions Per Level	2
Screw Size	M3
Termination Style	Screw - Leaf Spring, Wire Guard
Type	Plug, Female Sockets
Voltage	300 V
Voltage Rating	300 VAC
Wire Gauge or Range	0.2-3mmﾂｲ
