691352410006

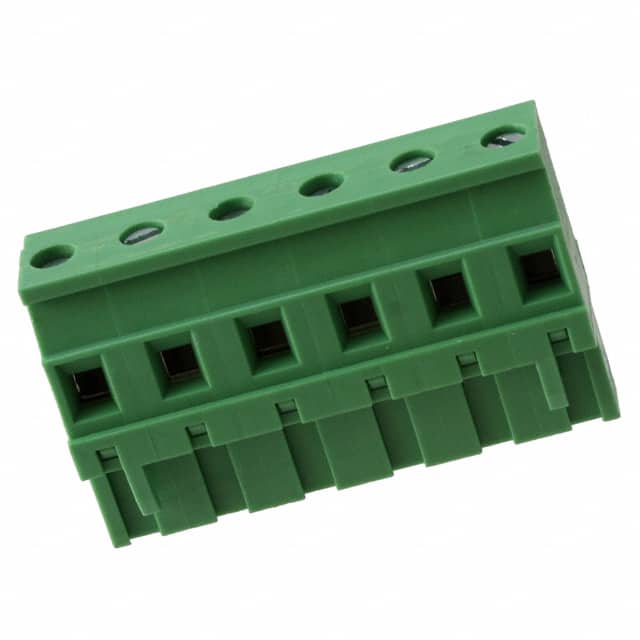

The 691352410006 is a 6-position horizontal cable entry plug from the WR-TBL series 3524 by Würth Elektronik. It features a 7.62mm pitch and a free hanging (in-line) mounting style with 90° wire entry. The termination is screw type with a leaf spring and wire guard, using an M3.0 screw. It includes retention latches on the wire side for secure mating. The insulator is PA66 with UL94 V-0 flammability rating, and the metal housing is brass. The terminal screw is steel with zinc plating, and the wire guard is phosphor bronze with tin plating.

Electrically, the plug is rated for 15 A continuous current and 300 VAC working voltage, with a withstanding voltage of 1.6 kV and a maximum contact resistance of 20 mOhm. It accepts 24-12 AWG solid or stranded wire (0.205-3.31 mm²) with a recommended strip length of 6-7 mm and a torque of 0.49 Nm. The operating temperature range is -40°C to 105°C. The component is RoHS compliant and lead-free.

Packaging is in box quantities. The datasheet includes a caution that this component is intended for general electronic equipment and should not be used in safety-critical applications such as aerospace, medical, or automotive control without written approval from Würth Elektronik.
