| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Features | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Screw Size | |
| Termination Style | |
| Torque | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range | |
| Withstanding Voltage |

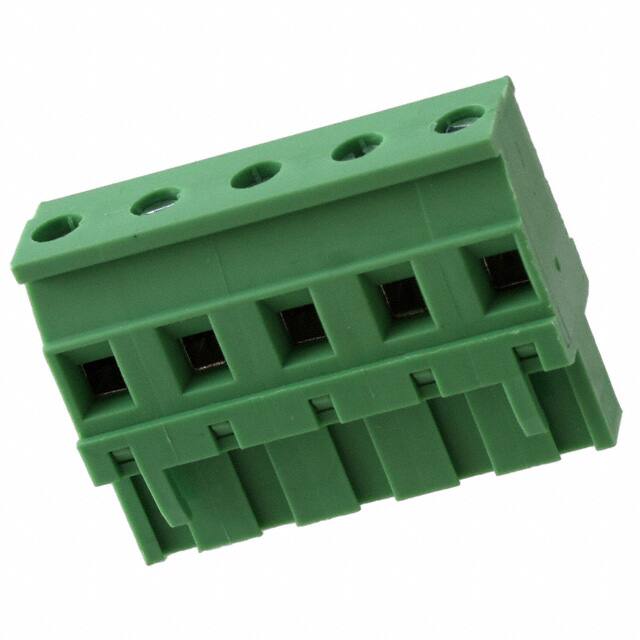

The Würth Elektronik 691352410005 is a 5-position terminal block plug from the WR-TBL series, designed for wire-to-board connections. It features a 7.62mm pitch and female socket contacts, allowing for secure mating with male headers. The plug accepts 24-12 AWG wire and uses a screw termination with a leaf spring and wire guard for reliable wire retention. The plug has a 90° wire entry angle, making it suitable for horizontal cable entry in compact enclosures.
Electrical ratings include a current rating of 15A and a voltage rating of 300V, with a withstanding voltage of 1.6kV and contact resistance of 20mOhm maximum. The insulator is made of PA66 (UL94 V-0), and the metal housing is brass. Operating temperature range is -40°C to 105°C.
This plug is free hanging (in-line) mounted and includes retention latches on the wire side for added security. It is packaged in a box. The part is RoHS compliant and lead-free, with cULus certification (E315414).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.07 | $3.07 |
| 10+ | $2.75 | $2.75 |
| 50+ | $2.37 | $2.37 |
| 100+ | $2.12 | $2.12 |
| 500+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This plug has 5 positions.
The pitch is 7.62mm (0.300").
The current rating is 15 A.
The voltage rating is 300 V.
The mounting type is Free Hanging (In-Line).
It accepts 24-12 AWG (0.205-3.31 mm²) wire.
Yes, this part is RoHS compliant and lead-free.
