| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Features | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Screw Size | |
| Storage Temperature | |
| Termination Style | |
| Torque | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range | |
| Withstanding Voltage | |
| Working Voltage |

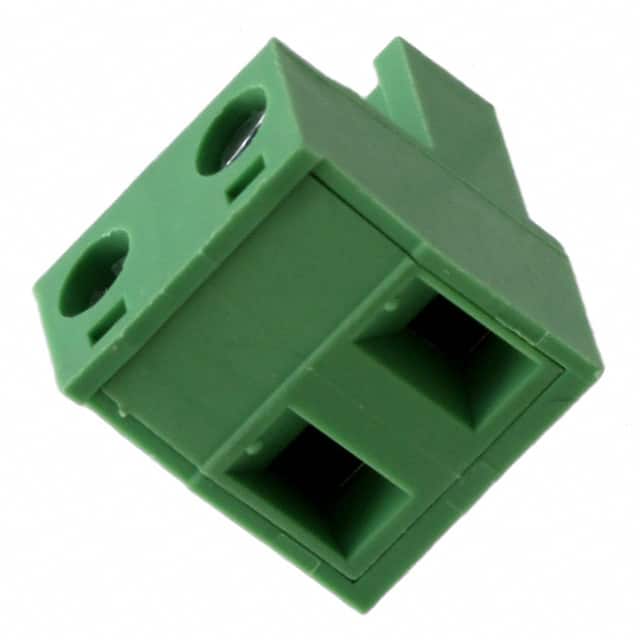

The Würth Elektronik 691351400002 is a 2-position plug from the WR-TBL Series 3514, featuring female sockets with a 7.62mm pitch. This plug uses a screw termination with a leaf spring and wire guard for secure wire connections accepting 24-12 AWG solid or stranded wire. It is designed for free hanging (in-line) mounting with a 180° wire entry. The insulator is green PA66 with a UL94 V-0 flammability rating, and the metal housing is brass. The terminal screw is steel with zinc plating.
Electrical ratings include a current rating of 20A, a working voltage of 300 VAC, and a withstanding voltage of 1.6 kV. Contact resistance is a maximum of 20 mOhm. The plug operates over a temperature range of -40°C to 105°C. It features retention latches on the non-wire side for secure mating.
The packaging is a box, with dimensions calculated per number of positions. RoHS and lead-free compliance are verified. This plug is suitable for general electronic equipment applications requiring reliable power or signal connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.25 | $1.25 |
| 10+ | $1.12 | $1.12 |
| 50+ | $0.97 | $0.97 |
| 100+ | $0.87 | $0.87 |
| 210+ | $0.82 | $0.82 |
| 420+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions.
The pitch is 7.62 mm.
The current rating is 20 A.
The working voltage is 300 VAC with a withstanding voltage of 1.6 kV.
It is free hanging (in-line) mounting with 180° wire entry.
It accepts 24-12 AWG solid or stranded wire.
The operating temperature range is -40°C to 105°C.
