Mfr Part #:

691349340007

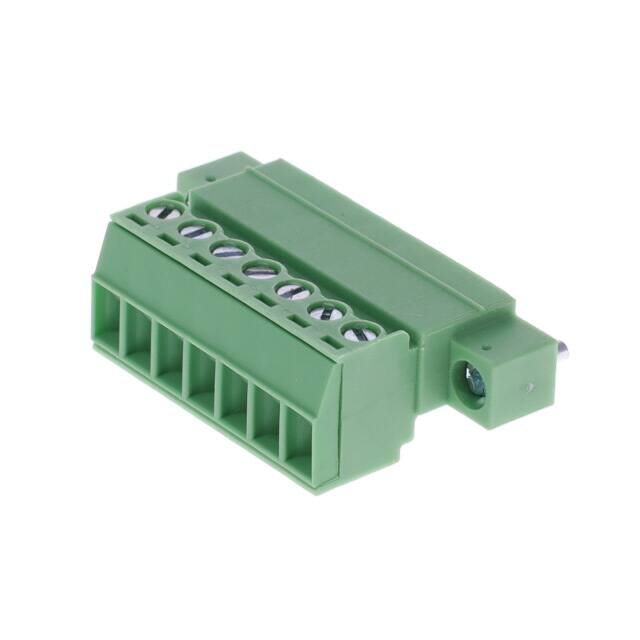

Würth Elektronik 691349340007 is a 7-position terminal block plug with 3.81mm pitch, free hanging mounting, and screw termination. Rated for 8A and 300V.

✓ Total Stock: 10 pcs

$ Price Range: $5.13

691349340007 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	10 pcs On Request	10 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

691349340007 Description

Short technical summary and product information.

The Würth Elektronik 691349340007 is a 7-position terminal block plug with male pins. It features a 3.81mm pitch and is designed for free hanging (in-line) mounting. The termination style is screw rising cage clamp, which provides secure wire connections.

Electrical ratings include 8A current and 300V voltage, with a withstanding voltage of 1.6kV. Contact resistance is 20mOhm max. The plug accepts wire gauges from 30 to 14 AWG (0.051-2.08 mm²) with a strip length of 7mm. The screw torque specification is 0.29 Nm (M2.0 screw).

The insulator is made of PA 66 with a green color, and the contacts are brass with tin plating. The flammability rating is UL94 V-0. Operating temperature range is -40°C to 115°C. The soldering process is JEDEC Lead Free Wave Soldering. Packaging is in box format.

This product is RoHS compliant and lead free. It is part of the Würth Elektronik 3493 series.

691349340007 Quick Information

Product Type: Terminal Block Plug

Series: 3493

Canonical Name: Plug, Male Pins, 7 Positions, 3.81mm Pitch, Free Hanging, Screw Termination

Subcategory: Headers, Plugs and Sockets

691349340007 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Non-Compliant

Lead Free: Lead Free

691349340007 Estimated Pricing

Qty	Low	High
150+	$5.13	$5.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

691349340007 Features

7 positions with 3.81mm pitch.
Free hanging in-line mounting style.
Screw rising cage clamp termination.
Rated for 8A current and 300V voltage.
Accepts 30-14 AWG solid or stranded wire.

691349340007 Applications

Used in industrial control and automation systems.
Suitable for power distribution in panels.
Ideal for sensor and actuator connections.
Common in building automation and HVAC equipment.

691349340007 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this terminal block plug have?

This plug has 7 positions.

What is the pitch of this terminal block plug?

The pitch is 3.81mm.

What is the current rating of this terminal block plug?

The current rating is 8A.

What is the voltage rating of this terminal block plug?

The voltage rating is 300V.

What is the mounting type for this terminal block plug?

The mounting type is Free Hanging (In-Line).

What wire gauge range does this plug accept?

It accepts 30-14 AWG (0.051-2.08 mm²) solid or stranded wire.

What is the operating temperature range?

The operating temperature range is -40°C to 115°C.

Category	Headers, Plugs and Sockets
Manufacturer Name	Würth Elektronik
Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Plating	Tin
Contact Resistance	20 mOhm max
Current	8 A
Current Rating	8 A
Features	Mating Flange
Insulator Material	PA 66
Lead Spacing	3.81 mm
Lead Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	7
Operating Temperature	-40°C ~ 115°C
Pitch	3.81mm (0.150")
Plug Wire Entry	180°
Positions Per Level	7
Screw Size	M2.0
Termination Style	Screw - Rising Cage Clamp
Torque	0.29 Nm
Type	Plug, Male Pins
Voltage	300 V
Voltage Rating	300 V
Wire Gauge or Range	30-14 AWG / 0.051-2.08 mm²
Withstanding Voltage	1.6 kV
