Mfr Part #:

691345510005

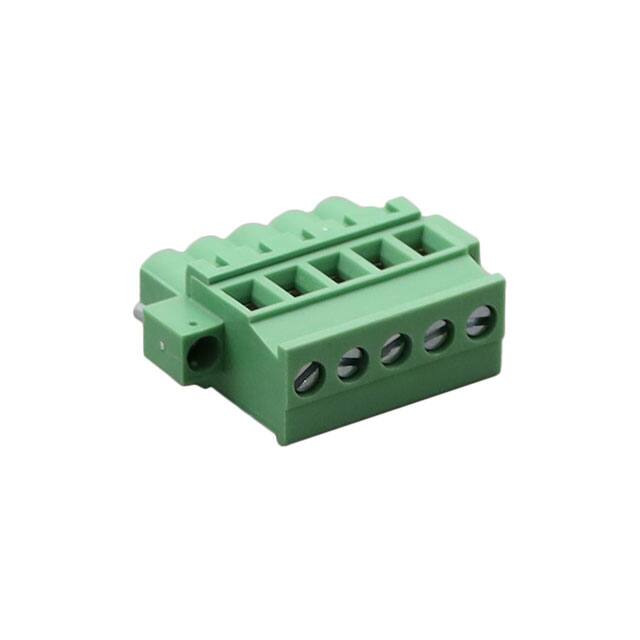

Würth Elektronik WR-TBL 5.08mm 5-pin terminal block plug with female sockets, screw termination (leaf spring, wire guard), free hanging (in-line) mounting, rated 15/17A at 300VAC.

✓ Total Stock: 10 pcs

$ Price Range: $5.79

691345510005 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	10 pcs On Request	10 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

691345510005 Description

Short technical summary and product information.

The Würth Elektronik 691345510005 is a 5-position terminal block plug from the WR-TBL series with a 5.08mm pitch. It features female socket contacts and uses a screw termination with leaf spring and wire guard for secure wire connection. The plug accepts 24-12 AWG solid or stranded wire with a stripping length of 6-7 mm and a screw torque of 0.4 Nm. It is designed for free hanging (in-line) mounting with a 90° plug wire entry angle. Rated at 15 A (cULus) / 17 A (VDE) and 300 VAC, with a withstanding voltage of 1.6 kV (cULus) / 2.5 kV (VDE) and a maximum contact resistance of 20 mOhm. The green PA 66 insulator has a UL94 V-0 flammability rating. It includes a mating flange and retention latches on the non-wire side for secure mating.

691345510005 Quick Information

Product Type: Terminal Block Plug

Series: WR-TBL 3455

Canonical Name: Würth Elektronik WR-TBL Series 691345510005 5.08mm 5-Pin Terminal Block Plug, Female Sockets, Free Hanging

Subcategory: Plug, Female Sockets

691345510005 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Non-Compliant

Lead Free: Yes

691345510005 Estimated Pricing

Qty	Low	High
60+	$5.79	$5.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

691345510005 Features

5-pin plug with 5.08mm pitch
Screw termination with leaf spring wire guard
Rated for 15/17A at 300 VAC
Free hanging in-line mounting
UL94 V-0 rated PA 66 insulator

691345510005 Applications

Ideal for industrial control panel wiring
Used in automation and process equipment
Suitable for power distribution connections
Well suited for HVAC and building control systems

691345510005 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the WR-TBL 691345510005 have?

It has 5 positions (poles).

What is the pitch of this terminal block plug?

The pitch is 5.08 mm (0.200 inches).

What is the current rating?

15 A per cULus and 17 A per VDE standards.

What is the voltage rating?

Working voltage is 300 VAC.

What type of mounting does this plug use?

Free hanging (in-line) mounting with 90° wire entry.

What wire gauge range is supported?

Accepts 24-12 AWG solid or stranded wire (0.205-3.31 mm²).

Is this component RoHS compliant?

Yes, it is RoHS compliant and has UL94 V-0 flammability rating.

Category	Headers, Plugs and Sockets
Manufacturer Name	Würth Elektronik
AEC Qualified	No
Automotive Grade	No
Color	Green
Contact Resistance	20 mOhm max
Current	15 A
Current Rating	15 A (cULus), 17 A (VDE)
Features	Mating Flange, Retention Latches (Non-Wire Side)
Halogen Free	No
Industrial Grade	Yes
Insulator Material	PA 66
Lead Spacing	5.08 mm
Lead Style	Screw - Leaf Spring, Wire Guard
Medical Grade	No
Military Grade	No
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	5
Operating Temperature	-40°C ~ 105°C
Pitch	5.08mm
Plug Wire Entry	90°
Positions Per Level	5
SVHC Present	Not Present
Screw Size	M3.0
Termination Style	Screw - Leaf Spring, Wire Guard
Torque	0.4 Nm
Type	Plug, Female Sockets
Voltage	300 V
Wire Gauge or Range	24-12 AWG
Withstanding Voltage	1.6 kV (cULus), 2.5 kV (VDE)
Working Voltage	300 VAC
