691345410005

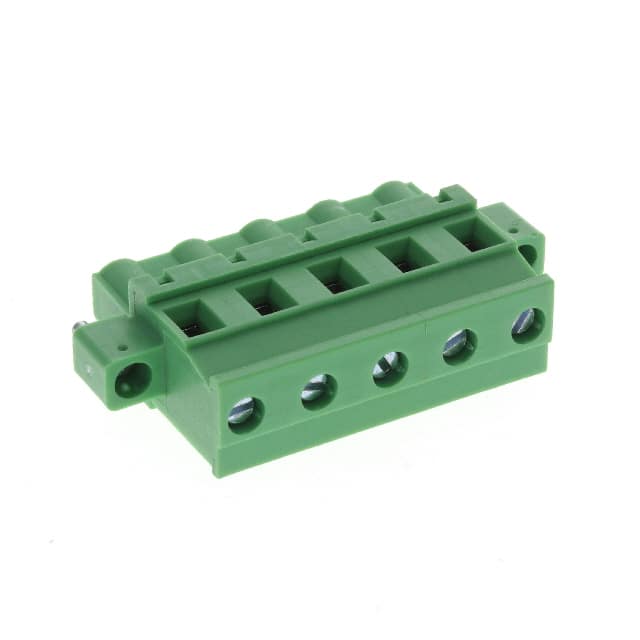

The Würth Elektronik 691345410005 is a 5-position terminal block plug from the WR-TBL series 3454. It has a pitch of 7.62 mm and is designed for horizontal cable entry. The plug uses screw termination with a leaf spring and wire guard for secure wire connections. It accepts solid and stranded wires from 24-12 AWG and requires a strip length of 6-7 mm. The recommended torque is 4.3 Lb-In (0.49 Nm).

This plug is rated for 300 V AC working voltage and 15 A current. It has a withstanding voltage of 1.6 kV and a maximum contact resistance of 20 mOhm. The operating temperature range is -40°C to 105°C. The insulator is made of PA 66 (green), and the metal housing is brass. The terminal screw is steel with zinc plating, and the wire guard is tin-plated phosphor bronze. The flanges screw is steel M2.5.

The plug is designed for free hanging (in-line) mounting. It features mating flanges and retention latches on the non-wire side. The packaging is in boxes. The part is RoHS and lead-free compliant and has a flammability rating of UL94 V-0. This plug is suitable for use in general electronic equipment where higher safety and reliability are not critical, as per the manufacturer's cautions.
