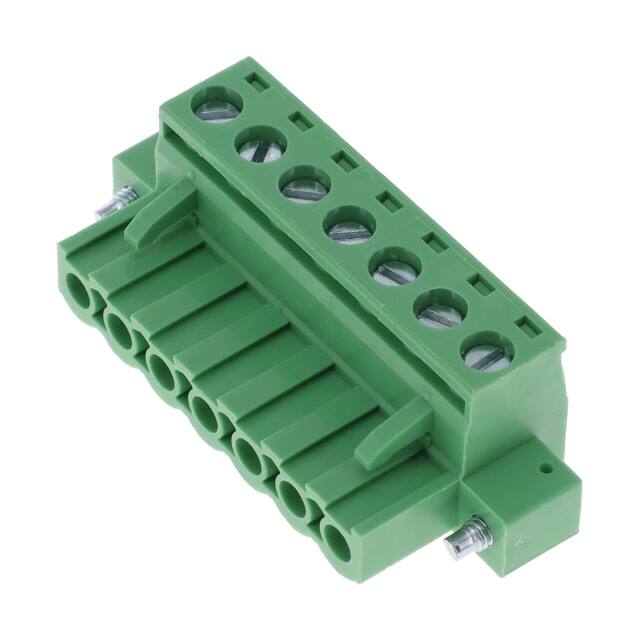

691343710007 5.00mm pitch terminal block plug with 7 positions, female sockets, free hanging mounting, screw termination with leaf spring and wire guard.
Mfr Part #:

691343710007

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
5.00mm pitch terminal block plug with 7 positions, female sockets, free hanging mounting, screw termination with leaf spring and wire guard.
✓ Total Stock: 10 pcs
$ Price Range: $4.41 - $6.97

691343710007 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691343710007 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Resistance
Current
Current Rating
Features
Halogen Free
Industrial Grade
Insulator Material
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Screw Size
Termination Style
Torque
Type
Voltage
Wire Gauge or Range
Withstanding Voltage
Working Voltage
View Similar Products (0)

691343710007 Description

Short technical summary and product information.

This Würth Elektronik WR-TBL series 3437 terminal block plug features a 5.00mm pitch and 7 positions in a single level, providing a compact yet robust connection solution for wire-to-board applications. The plug is designed with female sockets and a free hanging (in-line) mounting style, making it suitable for field installation. Termination is via screw with a leaf spring and wire guard, ensuring secure and reliable contact for solid or stranded wires from 24 to 12 AWG.



Electrical ratings include 20 A current capacity and 300 V working voltage (VDE rated with 2.5 kV withstand voltage). Contact resistance is 20 mOhm max. The insulator is green PA 66 with UL94 V-0 flammability rating, and the metal housing is brass. Operating temperature range is -40°C to 105°C.



Features include mating flanges for secure panel mounting and retention latches on the non-wire side to prevent accidental disconnection. The plug is RoHS compliant and lead-free, packaged in a box.

691343710007 Quick Information

Product Type: Terminal Block Plug
Series: 3437
Canonical Name: 5.00mm Pitch 7 Position Plug, Female Sockets, Free Hanging, Screw Termination Terminal Block
Subcategory: Plugs

691343710007 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

691343710007 Estimated Pricing

Qty Low High
1+ $6.97 $6.97
10+ $6.33 $6.33
50+ $5.94 $5.94
100+ $5.43 $5.43
450+ $4.41 $4.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

691343710007 Features

  • 5.00mm pitch for compact wiring.
  • 7 position female socket plug.
  • Screw termination with leaf spring and wire guard.
  • Rated for 20 A and 300 V.
  • Free hanging in-line mounting with mating flanges.

691343710007 Applications

  • Ideal for industrial control cabinet wiring.
  • Used in power distribution systems.
  • Suitable for sensor and actuator connections.
  • Common in building automation.
  • Applied in machinery and equipment.

691343710007 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

7 positions.

What is the pitch?

5.00mm (0.197 inches).

What is the current rating?

20 A.

What is the working voltage?

300 V AC.

What is the mounting type?

Free Hanging (In-Line).

What termination style is used?

Screw - Leaf Spring, Wire Guard.

What is the wire gauge range?

24-12 AWG solid or stranded wire.
