691343510012

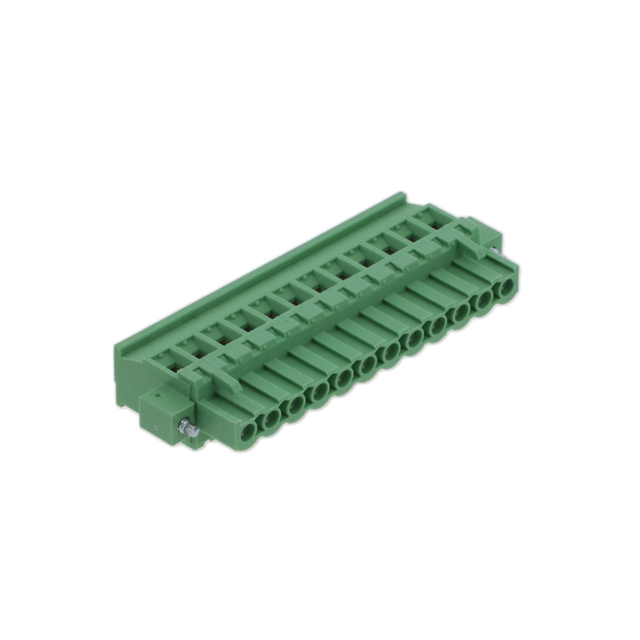

The Würth Elektronik 691343510012 is a WR-TBL Series 3435 terminal block plug designed for reliable wire-to-board connections. It features 12 positions on a single level with a 5.08mm pitch, accommodating solid wires from 0.2 to 2.5 mm² and stranded wires from 28 to 12 AWG. The screw termination with leaf spring and wire guard ensures secure clamping, while the 90° wire entry simplifies routing in tight spaces.

Electrical ratings include a rated current of 15 A at 25°C and working voltages of 300 V (cULus) and 320 V (VDE). Withstanding voltage is 1600 V (cULus) and 2200 V (VDE) for one minute. Contact resistance is a maximum of 20 mΩ. The insulator is made of PA66 with UL94 V-0 flammability rating, and contacts are copper alloy with tin over nickel plating. The plug includes a mating flange and retention latches on the wire side.

This plug is approved under cULus (E315414) and VDE (40061301) and is RoHS3 and REACH compliant. It is packaged in a box and operates over -40°C to 105°C. The free hanging (in-line) mounting type makes it suitable for field wiring applications where a robust, tool-accessible connection is required.
