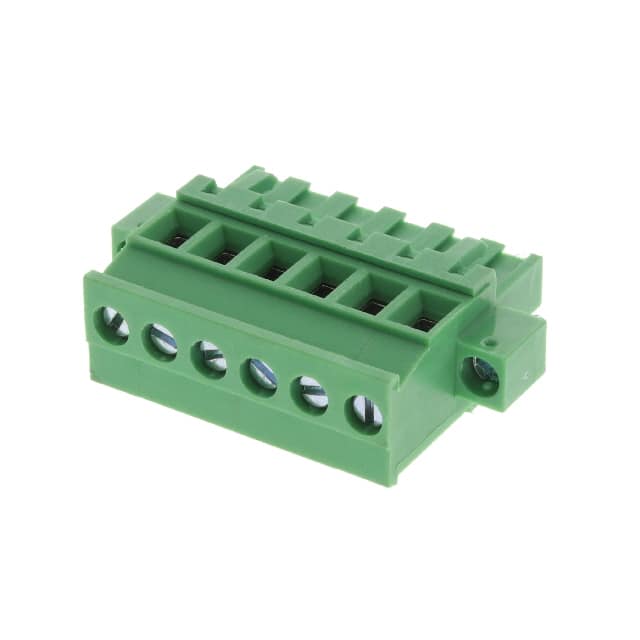

691340700006 Würth Elektronik WR-TBL series 3407 5.00mm pitch, 6-position, female socket terminal block plug with 90° wire entry. Rated 15A/300VAC (cULus) and 17A/300VAC (VDE).
Mfr Part #:

691340700006

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL series 3407 5.00mm pitch, 6-position, female socket terminal block plug with 90° wire entry. Rated 15A/300VAC (cULus) and 17A/300VAC (VDE).
✓ Total Stock: 8 pcs
$ Price Range: $4.84 - $7.13

691340700006 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691340700006 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

691340700006 Description

Short technical summary and product information.

The Würth Elektronik 691340700006 is a 6-position, female socket terminal block plug from the WR-TBL series 3407. It features a 5.00mm pitch and a free hanging (in-line) mounting style with 90° wire entry. The termination uses a screw with leaf spring and wire guard mechanism, accepting solid or stranded wire from 24-12 AWG (0.2-3.0 mm²) with a strip length of 6-7 mm.



Electrical ratings include 15A/300VAC (cULus) and 17A/300VAC (VDE), with a withstanding voltage of 1.6kV (cULus) and 2.5kV (VDE). Contact resistance is 20 mOhm maximum. The insulator is made of PA 66 with a UL94-V0 flammability rating, and the color is green. The plug includes mating flanges and retention latches on the wire side for secure connection.



This component is RoHS compliant and packaged in a box. It is suitable for general electronics equipment where a reliable, screw-clamp wire connection is required.

691340700006 Quick Information

Product Type: Terminal Block Plug
Series: 3407
Canonical Name: WR-TBL Series 3407 5.00mm Horizontal Cable Entry Plug with Flanges & Hook on Wire Side, 6 Position, Female Sockets
Subcategory: Headers, Plugs and Sockets

691340700006 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

691340700006 Estimated Pricing

Qty Low High
1+ $7.13 $7.13
10+ $6.55 $6.55
50+ $6.21 $6.21
100+ $5.75 $5.75
350+ $4.84 $4.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

691340700006 Features

  • 6-position, 5.00mm pitch terminal block plug.
  • Rated 15A/300VAC (cULus) and 17A/300VAC (VDE).
  • Screw termination with leaf spring and wire guard.
  • Free hanging mounting with 90° wire entry.
  • PA 66 insulator with UL94-V0 flammability rating.

691340700006 Applications

  • General purpose industrial control wiring.
  • Power supply and distribution connections.
  • Building automation and HVAC equipment.
  • Lighting and LED driver interconnections.

691340700006 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the 691340700006 terminal block plug?

The pitch is 5.00 mm (0.197 inches).

What is the current rating of this plug?

The current rating is 15 A per cULus and 17 A per VDE.

What is the voltage rating?

The voltage rating is 300 VAC for both cULus and VDE.

What mounting style does this plug use?

It uses free hanging (in-line) mounting with 90° wire entry.

What wire sizes are compatible?

It accepts solid or stranded wire from 24-12 AWG (0.2-3.0 mm²).

Is this component RoHS compliant?

Yes, it is RoHS compliant as verified by the datasheet.
