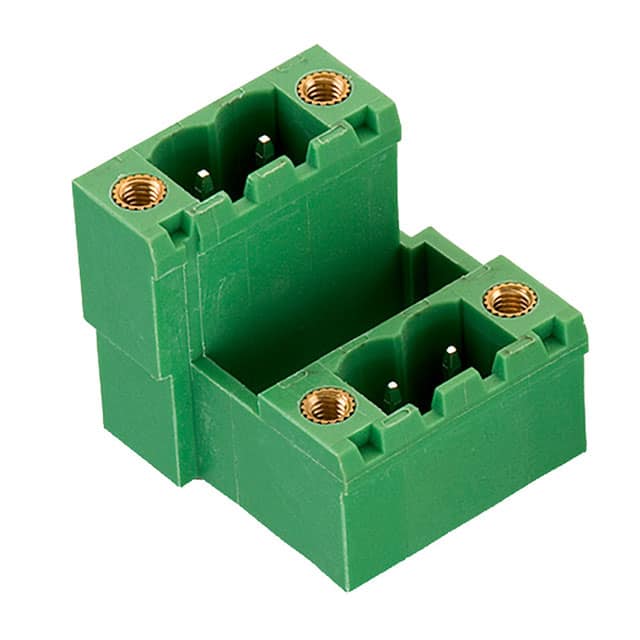

691337500004 Würth Elektronik WR-TBL Series 3375 double level vertical male PCB header with 5.08mm pitch, 4 positions (2 per level), rated 10A at 300VAC.
Mfr Part #:

691337500004

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 3375 double level vertical male PCB header with 5.08mm pitch, 4 positions (2 per level), rated 10A at 300VAC.
✓ Total Stock: 10 pcs
$ Price Range: $6.43

691337500004 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691337500004 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Features
Halogen Free
Header Orientation
Industrial Grade
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Withstanding Voltage
Working Voltage
View Similar Products (0)

691337500004 Description

Short technical summary and product information.

The Würth Elektronik 691337500004 is a WR-TBL Series 3375 double level vertical male PCB header designed for terminal block interconnect applications. It features a 5.08mm pitch with 4 positions arranged in 2 levels of 2 positions each. The header is shrouded on 4 sides and includes a mating flange with an integrated M2.5 brass nut for secure locking.



Electrical ratings include 10A current capacity and 300VAC working voltage, with a withstanding voltage of 1.6kV and maximum contact resistance of 20 mOhm. The insulator is made of green PA 66 with UL94-V0 flammability rating. Contact pins are brass with tin plating on both the mating surface and solder tails.



This through-hole component is packaged in a box and is RoHS and lead-free compliant. It is suitable for wave soldering per JEDEC lead-free process and operates over -40°C to 105°C.

691337500004 Quick Information

Product Type: PCB Header
Series: 3375
Canonical Name: WR-TBL Series 3375 5.08mm Double Level Vertical Male PCB Header with Flanges and Nut
Subcategory: Terminal Block Headers

691337500004 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

691337500004 Estimated Pricing

Qty Low High
70+ $6.43 $6.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

691337500004 Features

  • Double level vertical male PCB header.
  • 5.08mm pitch with 4 total positions.
  • Rated 10A at 300VAC working voltage.
  • Shrouded design with mating flange and nut.
  • Green PA 66 insulator, UL94-V0 rated.

691337500004 Applications

  • Used in industrial control and automation systems.
  • Suitable for power supply and distribution boards.
  • Ideal for building management and HVAC equipment.
  • Applied in machinery and process control panels.

691337500004 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the 691337500004 header?

The pitch is 5.08mm (0.200 inches).

How many positions does this header have?

It has 4 positions arranged in 2 levels with 2 positions per level.

What is the current rating of the 691337500004?

The current rating is 10A.

What is the voltage rating of this header?

The working voltage is 300VAC.

What mounting type does the 691337500004 use?

It is a through-hole mounting component with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

Is the 691337500004 RoHS compliant?

Yes, it is RoHS compliant and lead-free.
