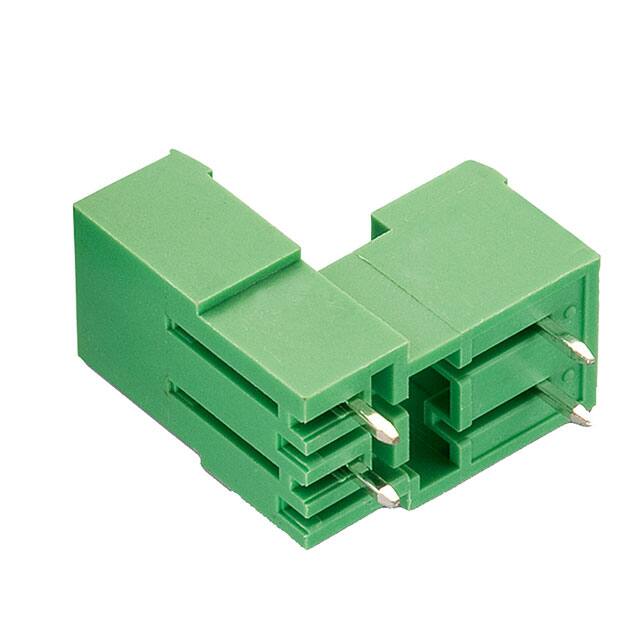

691336500004 This is a 4-position, 2-level, 5.08mm pitch vertical through hole terminal block header from Würth Elektronik's WR-TBL series. It features a shrouded design, tin contacts, and is rated for 15A and 300VAC.
Mfr Part #:

691336500004

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This is a 4-position, 2-level, 5.08mm pitch vertical through hole terminal block header from Würth Elektronik's WR-TBL series. It features a shrouded design, tin contacts, and is rated for 15A and 300VAC.
✓ Total Stock: 20 pcs
$ Price Range: $1.41 - $2.37

691336500004 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691336500004 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Withstanding Voltage
Working Voltage
View Similar Products (0)

691336500004 Description

Short technical summary and product information.

This terminal block header is a 4-position, 2-level (2 positions per level) component with a 5.08mm pitch. It features a vertical orientation and through-hole mounting with solder termination. The contact mating finish is tin, and the contact pin material is brass (CuZn) with tin-plated solder tails. The insulator is made of green PA 66 with a UL94-V0 flammability rating. Electrical ratings include a current rating of 15A, working voltage of 300VAC, withstanding voltage of 1.6kV, and contact resistance of 20mOhm max. The operating temperature range is -40°C to 105°C. Packaging is in a box. This header is part of the WR-TBL series and is designed for general electronics equipment. It is compliant with RoHS and lead-free requirements.

691336500004 Quick Information

Product Type: Terminal Block Header
Series: 3365
Canonical Name: Header, Male Pins, Shrouded (4 Side), 4 Position, 2 Levels, 5.08mm Pitch, Vertical, Through Hole, Solder, Tin Contact Finish
Subcategory: Headers

691336500004 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

691336500004 Estimated Pricing

Qty Low High
1+ $2.37 $2.37
10+ $2.13 $2.13
50+ $1.98 $1.98
100+ $1.79 $1.79
400+ $1.41 $1.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

691336500004 Features

  • 4 positions in 2 levels with 5.08mm pitch.
  • Vertical through hole mounting with solder termination.
  • Rated for 15A at 300VAC working voltage.
  • Tin-plated brass contacts for reliable connections.
  • Green PA 66 insulator with UL94-V0 rating.

691336500004 Applications

  • Ideal for industrial control panel wiring.
  • Used in power distribution systems.
  • Suitable for double-level PCB connections.

691336500004 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions and levels?

This header has 4 positions arranged in 2 levels with 2 positions per level.

What is the pitch of this terminal block header?

The pitch is 5.08mm (0.200 inches).

What is the current rating of this header?

The current rating is 15A.

What is the voltage rating?

The working voltage is 300VAC, with a withstanding voltage of 1.6kV.

What is the mounting type?

This header uses through-hole mounting with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What is the flammability rating of the insulator?

The insulator material is PA 66 with a UL94-V0 flammability rating.
