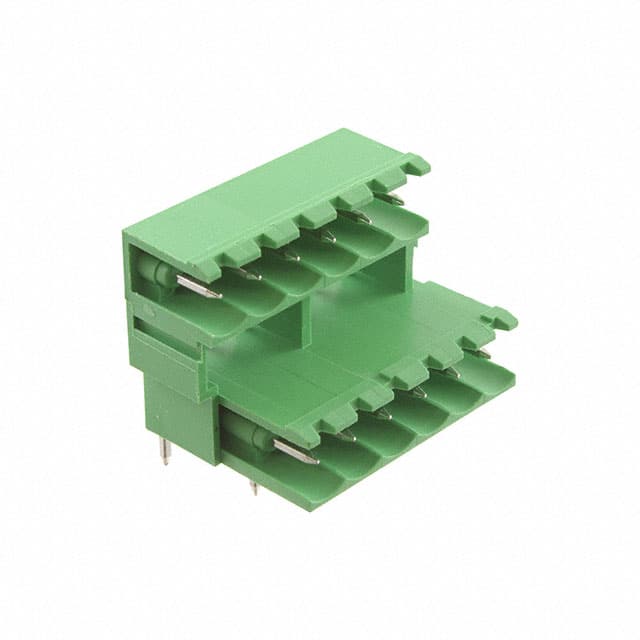

691335510012 Right angle shrouded male header with 12 positions in two levels, 5.08mm pitch. Through hole solder termination with tin plating.
Mfr Part #:

691335510012

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Right angle shrouded male header with 12 positions in two levels, 5.08mm pitch. Through hole solder termination with tin plating.
✓ Total Stock: 10 pcs
$ Price Range: $3.67 - $5.80

691335510012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691335510012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691335510012 Description

Short technical summary and product information.

The Würth Elektronik 691335510012 is a double level horizontal male PCB header from the WR-TBL series. It features 12 positions arranged in two levels of 6 each with a 5.08mm pitch. The header is right angle oriented for space-saving board layouts and uses through hole solder termination.



Electrical ratings include 10A current and 300V working voltage, with a withstanding voltage of 1.6kV and contact resistance of 20 mOhm maximum. The insulator is made of PA 66 with UL94-V0 flammability rating, and the contact pins are brass with tin plating on the solder tails.



Operating temperature range is -40°C to 105°C. The header is RoHS compliant and lead free, suitable for JEDEC lead free wave soldering processes. Packaging is in box quantities.

691335510012 Quick Information

Product Type: Terminal Block Header
Series: 3355
Canonical Name: Header, Male Pins, Shrouded (2 Side), Right Angle, Through Hole, 12 Positions (6 per Level), 5.08mm Pitch
Subcategory: Shrouded Header

691335510012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691335510012 Estimated Pricing

Qty Low High
1+ $5.80 $5.80
10+ $5.27 $5.27
50+ $4.95 $4.95
100+ $4.52 $4.52
400+ $3.67 $3.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

691335510012 Features

  • Right angle shrouded header design.
  • Dual level with 6 positions each.
  • Rated at 10A and 300V.
  • UL94-V0 flammability rated insulator.
  • Operating temperature -40°C to 105°C.

691335510012 Applications

  • PCB to terminal block connections in industrial controls.
  • Power distribution and signal transmission boards.
  • Suitable for automation and instrumentation equipment.
  • Used in general electronic devices requiring 5.08mm pitch headers.

691335510012 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the 691335510012?

5.08mm (0.200")

How many positions does it have?

12 positions, arranged in two levels of 6 each.

What is the current rating?

10 A

What is the voltage rating?

300 V

What is the mounting type?

Through Hole (solder termination).

What is the operating temperature range?

-40°C to 105°C

What is the flammability rating of the insulator?

UL94-V0
