691334500010 5.08mm double level vertical male PCB header with flanges, 10 positions (5 per level), rated 20A/300V. Through hole solder termination with Tin plated contacts.
Mfr Part #:

691334500010

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
5.08mm double level vertical male PCB header with flanges, 10 positions (5 per level), rated 20A/300V. Through hole solder termination with Tin plated contacts.
✓ Total Stock: 10 pcs
$ Price Range: $6.35

691334500010 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691334500010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Resistance
Current
Current Rating
Failure Rate
Features
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691334500010 Description

Short technical summary and product information.

The Würth Elektronik 691334500010 is a 5.08mm pitch double level vertical male PCB header from the 3345 series. It features a shrouded (4 side) design with a mating flange and brass M2.5 nut for secure locking.



This header has 10 positions arranged in 2 levels of 5 each. It is rated for 20A current and 300V working voltage, with a withstanding voltage of 1.6kV and maximum contact resistance of 20 mOhm. The operating temperature range is -40°C to 105°C.



The insulator is PA66 with UL94-V0 flammability rating. Contact pins are brass with Tin plating on the solder tails. The header is designed for through hole solder mounting and is suitable for wave soldering per JEDEC lead free process.



It is RoHS compliant and lead free. The part is packaged in a box. Applications include industrial control, power distribution, and general purpose wiring where reliable connections are required.

691334500010 Quick Information

Product Type: Terminal Block Header
Series: 3345

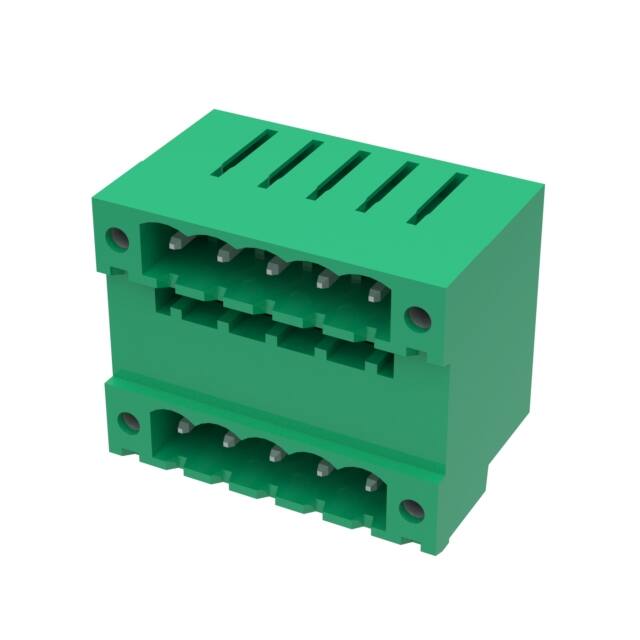

Canonical Name: WR-TBL 3345 Series 5.08mm Double Level Vertical Male PCB Header with Mating Flange
Subcategory: PCB Headers, Male Pins, Shrouded

691334500010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691334500010 Estimated Pricing

Qty Low High
30+ $6.35 $6.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

691334500010 Features

  • Double level 5.08mm pitch PCB header.
  • Rated 20A current and 300V voltage.
  • Through hole solder termination with Tin finish.
  • Shrouded design with mating flange for secure locking.
  • RoHS compliant and lead free.

691334500010 Applications

  • Used in industrial control panel wiring.
  • Ideal for power distribution terminal blocks.
  • Suitable for automation and machinery connections.
  • Applied in building automation systems.

691334500010 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691334500010 have?

It has 10 positions arranged in 2 levels of 5 positions per level.

What is the pitch of the 691334500010?

5.08 mm.

What is the current rating of the 691334500010?

20 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole.

What is the operating temperature range?

-40°C to 105°C.

Is the 691334500010 RoHS compliant?

Yes, it is RoHS compliant and lead free.
