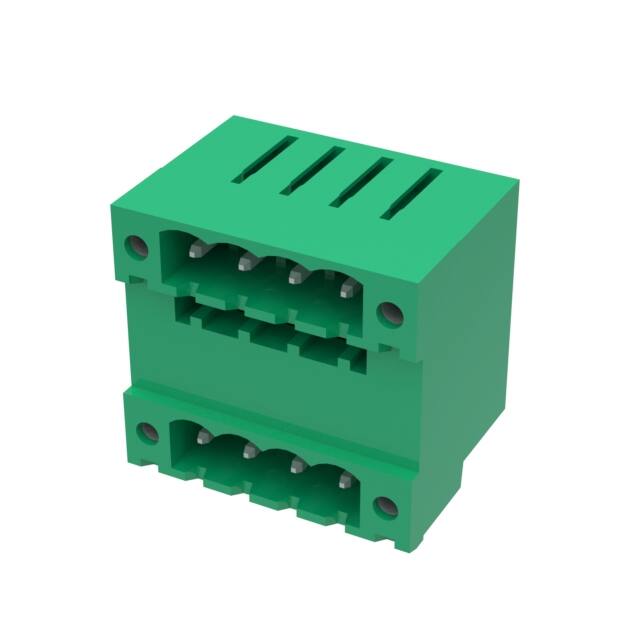

691334500008 WR-TBL Series 3345 double level vertical male PCB header with 8 positions (4 per level), 5.08mm pitch, rated 20A and 300V. Through hole solder termination, green PA66 insulator, tin-plated contacts.
Mfr Part #:

691334500008

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
WR-TBL Series 3345 double level vertical male PCB header with 8 positions (4 per level), 5.08mm pitch, rated 20A and 300V. Through hole solder termination, green PA66 insulator, tin-plated contacts.
✓ Total Stock: 10 pcs
$ Price Range: $5.57

691334500008 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691334500008 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Resistance
Current
Current Rating
Features
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Operating Temperature Range
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691334500008 Description

Short technical summary and product information.

The Würth Elektronik 691334500008 is a WR-TBL Series 3345 double level vertical male PCB header designed for terminal block interconnect applications. It features 8 positions arranged in 2 levels of 4 positions each on a 5.08mm pitch. The shrouded (4 side) header design includes an integrated mating flange for secure connection with mating plugs.



Electrical ratings include a current rating of 20A and a working voltage of 300VAC, with a maximum contact resistance of 20 mOhm and a withstanding voltage of 1.6kV. The insulator is made of green PA66 with a UL94-V0 flammability rating, and the contact pins are brass with tin-plated solder tails. The header also includes brass M2.5 nuts.



This component is through hole mounted and terminated via solder, suitable for JEDEC lead free wave soldering processes. It is RoHS compliant and lead free, with an operating temperature range of -40°C to 105°C. Packaging is in box format.

691334500008 Quick Information

Product Type: Terminal Block Header
Series: 3345
Canonical Name: WR-TBL Series 3345, 5.08mm Pitch, Double Level Vertical Male PCB Header with Mating Flange
Subcategory: PCB Header

691334500008 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691334500008 Estimated Pricing

Qty Low High
60+ $5.57 $5.57

Estimated market price range - modelled values for guidance only, not live distributor offers.

691334500008 Features

  • 8 positions in 2 levels of 4.
  • 5.08mm pitch vertical male header.
  • Rated 20A current and 300V voltage.
  • Green PA66 insulator, UL94-V0 rated.
  • Includes mating flange for secure connection.

691334500008 Applications

  • Used in industrial control and automation.
  • Suitable for power distribution systems.
  • Ideal for building and infrastructure wiring.
  • Applied in HVAC and lighting control panels.

691334500008 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

5.08mm (0.200").

How many positions does it have?

8 positions total, arranged in 2 levels of 4 positions each.

What is the current and voltage rating?

20A current rating and 300V working voltage.

What is the mounting type?

Through hole, vertical orientation, solder termination.

What is the operating temperature range?

-40°C to 105°C.

Is this component RoHS compliant?

Yes, RoHS compliant and lead free.

What is the insulator material and flammability rating?

PA66 insulator with UL94-V0 flammability rating.
