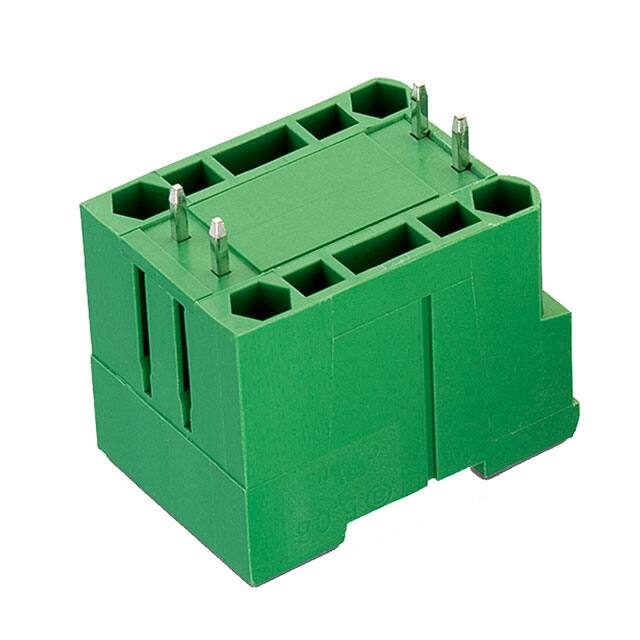

691334500004 Würth Elektronik 691334500004 is a 5.08mm pitch double level vertical male PCB header with 4 positions (2 per level). It features through-hole mounting, tin-plated brass contacts, and a shrouded design with mating flange.
Mfr Part #:

691334500004

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 691334500004 is a 5.08mm pitch double level vertical male PCB header with 4 positions (2 per level). It features through-hole mounting, tin-plated brass contacts, and a shrouded design with mating flange.
✓ Total Stock: 10 pcs
$ Price Range: $2.81 - $3.85

691334500004 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691334500004 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Resistance
Current
Features
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Withstanding Voltage
View Similar Products (0)

691334500004 Description

Short technical summary and product information.

The Würth Elektronik 691334500004 is a double-level vertical male PCB header from the WR-TBL series, designed for 5.08mm pitch terminal block applications. It features a shrouded (4 side) header with 4 positions arranged in two levels of 2 positions each. The header is rated for 20A current and 300V working voltage, with a withstanding voltage of 1.6kV and maximum contact resistance of 20mOhm.



The insulator is made of PA66 with UL94-V0 flammability rating, colored green. The contact pins are brass with tin plating on the solder tails, and the integrated nut is brass M2.5. The header includes a mating flange for secure connection. It supports through-hole mounting and is intended for wave soldering per JEDEC lead-free process.



Typical applications include power distribution, industrial control, and automation systems where reliable wire-to-board connections are required. The operating temperature range is -40°C to 105°C. The component is RoHS and lead-free compliant, certified under UL standard E315414.

691334500004 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Series: 3345
Canonical Name: Würth Elektronik WR-TBL Series 3345 5.08mm Double Level Vertical Male PCB Header
Subcategory: Terminal Block Headers

691334500004 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691334500004 Estimated Pricing

Qty Low High
1+ $3.85 $3.85
10+ $3.59 $3.59
50+ $3.43 $3.43
100+ $3.23 $3.23
350+ $2.81 $2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

691334500004 Features

  • Double level vertical male PCB header with 5.08mm pitch.
  • Rated for 20A current and 300V working voltage.
  • UL94-V0 PA66 insulator and tin-plated brass contacts.
  • Integrated brass M2.5 nut and mating flange.
  • Operating temperature range -40°C to 105°C.

691334500004 Applications

  • Ideal for power distribution in industrial control systems.
  • Used in automation and factory floor wiring applications.
  • Suitable for wire-to-board connections in general electronics.

691334500004 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

4 positions arranged in 2 levels with 2 positions per level.

What is the pitch?

5.08mm (0.200").

What are the current and voltage ratings?

20A current rating and 300V working voltage.

What is the mounting type?

Through Hole with solder termination.

What is the operating temperature range?

-40°C to 105°C.

What is the contact resistance?

20 mOhm maximum.

What are the insulator material and flammability rating?

Insulator is PA66 with UL94-V0 flammability rating.
