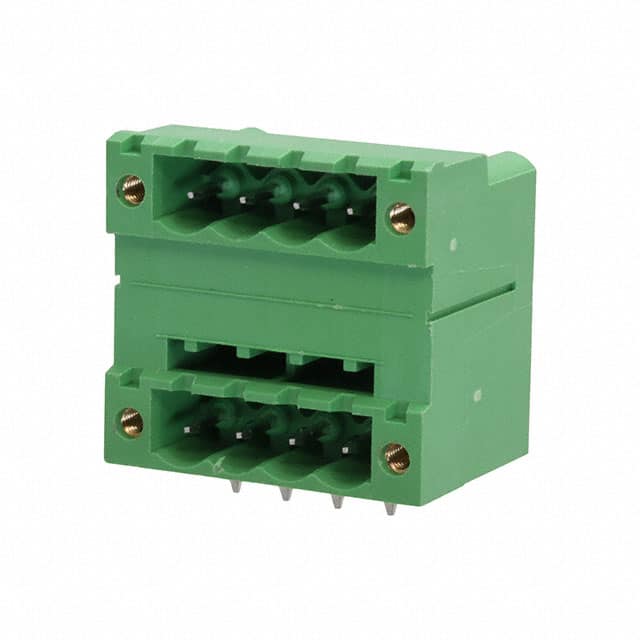

The Würth Elektronik 691332510008 is a double level horizontal male PCB header from the WR-TBL Series 3325. It features 8 total positions arranged in 2 levels of 4 positions each, on a 5.08mm pitch. The shrouded 4-side design includes a mating flange for secure connector locking.
This through-hole header is rated for 20 A current and 300 V working voltage, with a withstanding voltage of 1.6 kV and contact resistance of 20 mOhm maximum. It operates over a temperature range of -40°C to 105°C. The contacts are brass with tin plating on the mating surface and solder tails. The green PA66 insulator meets UL94-V0 flammability rating.
The packaging is box, and the recommended soldering process is JEDEC lead-free wave soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.09 | $6.09 |
| 10+ | $5.68 | $5.68 |
| 50+ | $5.43 | $5.43 |
| 100+ | $5.10 | $5.10 |
| 400+ | $4.45 | $4.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5.08mm (0.200 inches).
20 A current rating and 300 V working voltage.
8 total positions arranged in 2 levels of 4 positions each.
Through hole with solder termination.
Yes, RoHS3 compliant and lead free per the datasheet.
-40°C to +105°C.
UL94-V0.
