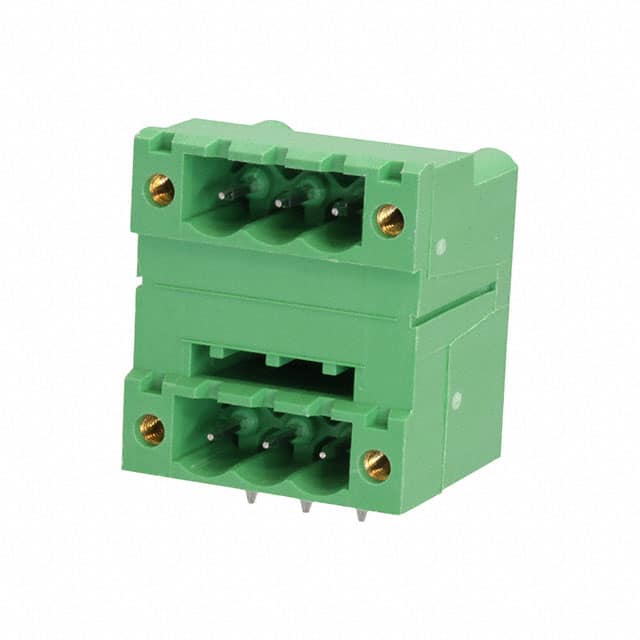

691332510006 Würth Elektronik 691332510006 is a 5.08mm pitch, 6-position (3 positions per level, 2 levels) double level right angle shrouded male PCB header with mating flange and nut. It features through-hole solder termination, tin plating, and a UL94-V0 rated green PA66 insulator.
Mfr Part #:

691332510006

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 691332510006 is a 5.08mm pitch, 6-position (3 positions per level, 2 levels) double level right angle shrouded male PCB header with mating flange and nut. It features through-hole solder termination, tin plating, and a UL94-V0 rated green PA66 insulator.
✓ Total Stock: 10 pcs
$ Price Range: $3.25 - $4.44

691332510006 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691332510006 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Features
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Withstanding Voltage
View Similar Products (0)

691332510006 Description

Short technical summary and product information.

This Würth Elektronik WR-TBL series 3325 header is a 5.08mm pitch, double level, right angle male PCB header with 6 positions arranged as 3 positions per level. The housing is a shrouded (4 side) design with an integrated mating flange and a brass M2.5 nut for secure locking.



Electrically, it is rated for 20 A current and 300 V working voltage, with a withstand voltage of 1.6 kV and a maximum contact resistance of 20 mOhm. The operating temperature range spans -40°C to 105°C, accommodating industrial environments.



Constructed with a green PA66 insulator (UL94-V0 flammability rated) and brass contact pins with tin plating on the solder tails, this header is designed for through-hole soldering. It is RoHS compliant and lead-free (JEDEC wave soldering process). Packaging is in box format.

691332510006 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Series: 3325
Canonical Name: Würth Elektronik 691332510006, 5.08mm Pitch, 6 Position (3x2), Double Level, Right Angle, Shrouded Male PCB Header with Mating Flange and Nut
Subcategory: Double Level PCB Header

691332510006 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

691332510006 Estimated Pricing

Qty Low High
1+ $4.44 $4.44
10+ $4.14 $4.14
50+ $3.97 $3.97
100+ $3.73 $3.73
400+ $3.25 $3.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

691332510006 Features

  • 5.08mm pitch double level design.
  • Rated for 20A and 300V operation.
  • Right angle orientation for space saving.
  • Shrouded housing with mating flange and nut.
  • UL94-V0 flammability rated green PA66 insulator.

691332510006 Applications

  • Used in industrial control and automation systems.
  • Suitable for power supply and distribution boards.
  • Ideal for modular terminal block interconnect applications.
  • Common in PLC and I/O module wiring harnesses.

691332510006 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

6 positions arranged as 3 positions per level across 2 levels.

What is the pitch of this header?

5.08 mm pitch.

What is the current and voltage rating?

Rated for 20 A current and 300 V working voltage.

What is the mounting type and orientation?

Through hole mounting with 90° right angle orientation.

What materials are used in construction?

Insulator is green PA66 (UL94-V0), contact pins are brass with tin plating on solder tails, nut is brass M2.5.

Is this header RoHS compliant?

Yes, it is RoHS compliant and lead-free per JEDEC wave soldering process.

What is the operating temperature range?

-40°C to 105°C.
