| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Resistance | |
| Current | |
| Features | |
| Header Orientation | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Withstanding Voltage |

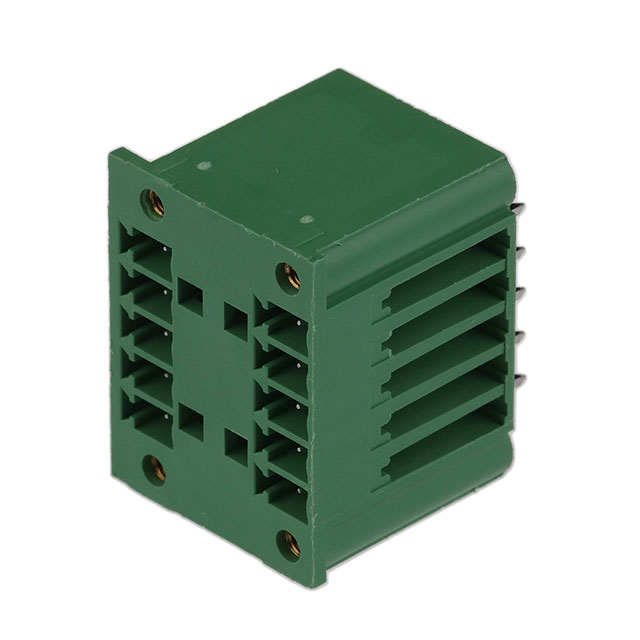

The Würth Elektronik 691330300010 is a WR-TBL Series 3303 double level vertical male PCB header designed for terminal block interconnect applications. It features 10 positions arranged in 2 levels with 5 positions per level and a 3.81mm pitch. The header is through hole mounted with solder termination and has a vertical orientation.
Electrical ratings include a nominal current rating of 10A and a nominal voltage rating of 300V. The withstanding voltage is 1.6kV and the maximum contact resistance is 20 mOhm. The operating temperature range is -40°C to 105°C.
The insulator is made of green PA 66 A with a UL94-V0 flammability rating. The contact pins are brass with a tin plating on the solder tails. The header includes a mating flange and brass M2.5 nuts. It is packaged in a box and is RoHS and lead free compliant.
| Qty | Low | High |
|---|---|---|
| 50+ | $7.11 | $7.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 691330300010 has 10 positions arranged in 2 levels with 5 positions per level.
The pitch is 3.81mm.
The nominal current rating is 10A.
The nominal voltage rating is 300V.
The mounting type is through hole.
The operating temperature range is -40°C to 105°C.
Yes, the 691330300010 is RoHS3 compliant and lead free.
