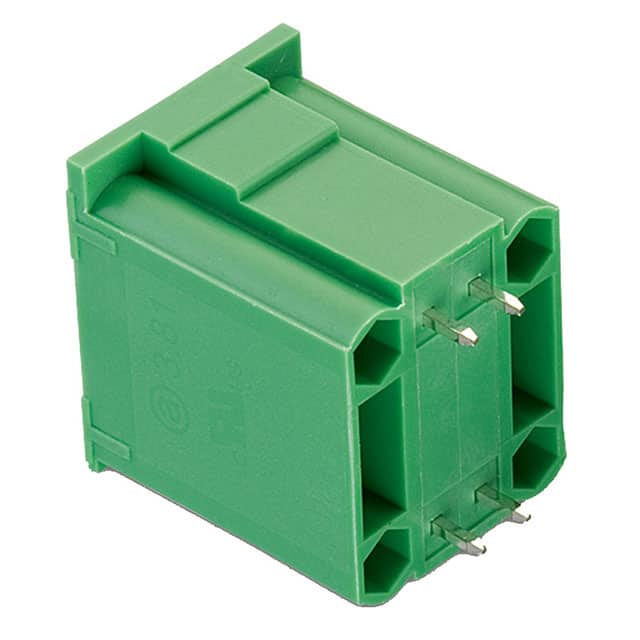

691330300004 Würth Elektronik WR-TBL Series 3303 double level vertical male PCB header with 4 positions (2 per level), 3.81mm pitch, rated 10A and 300V. Through hole solder termination with tin plated brass contacts and green PA66 insulator.
