691328310016 Würth Elektronik WR-TBL Series 3283, 3.81mm pitch, 16 position (8x2) double level right angle male pin header with shrouded design and mating flange.
Mfr Part #:

691328310016

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 3283, 3.81mm pitch, 16 position (8x2) double level right angle male pin header with shrouded design and mating flange.
✓ Total Stock: 10 pcs
$ Price Range: $7.51 - $11.46

691328310016 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691328310016 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Resistance
Current
Current Rating
Failure Rate
Features
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691328310016 Description

Short technical summary and product information.

The Würth Elektronik 691328310016 is a WR-TBL Series 3283 terminal block header designed for reliable wire-to-board connections. It features a double level, right angle orientation with 16 positions arranged as 8 positions per level. The header uses a 3.81mm pitch and is through-hole mounted with solder termination.



Rated for 10A current and 300VAC working voltage, this header offers a withstanding voltage of 1.6kV and a maximum contact resistance of 20 mOhm. The insulator is made of green PA66 with a UL94 V-0 flammability rating. Contact pins are brass with tin plating, and the integrated brass M2.5 nut enables secure mating with a flange.



Designed for JEDEC lead free wave soldering, the component operates over a temperature range of -40°C to 105°C. It is RoHS compliant and lead free. The packaging is a box.

691328310016 Quick Information

Product Type: Terminal Block Header
Series: 3283

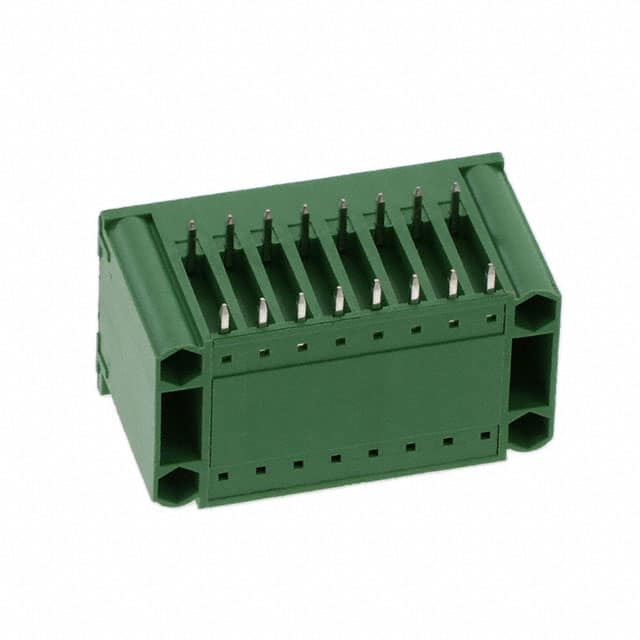

Canonical Name: WR-TBL Series 3283, 3.81mm Pitch, 16 Position (8x2), Double Level, Right Angle, Shrouded Header with Mating Flange
Subcategory: Terminal Block Headers

691328310016 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691328310016 Estimated Pricing

Qty Low High
1+ $11.46 $11.46
10+ $10.48 $10.48
50+ $9.88 $9.88
100+ $9.09 $9.09
400+ $7.51 $7.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

691328310016 Features

  • Double level 16-pin right angle header.
  • 3.81mm pitch with through-hole mounting.
  • Rated for 10A current and 300VAC.
  • UL94 V-0 rated PA66 green insulator.
  • Integrated mating flange with brass nut.

691328310016 Applications

  • Industrial control and automation systems.
  • Power supply and distribution boards.
  • Building automation and HVAC equipment.
  • Lighting and LED driver connections.

691328310016 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

The pitch is 3.81mm (0.150 inches).

How many positions does this header have?

It has 16 positions arranged as 8 positions per level across 2 levels.

What is the current and voltage rating?

The current rating is 10A and the voltage rating is 300VAC.

What is the mounting type?

Through-hole mounting with solder termination.

What is the operating temperature range?

-40°C to 105°C.

Is this component RoHS compliant?

Yes, it is RoHS compliant and lead free.
