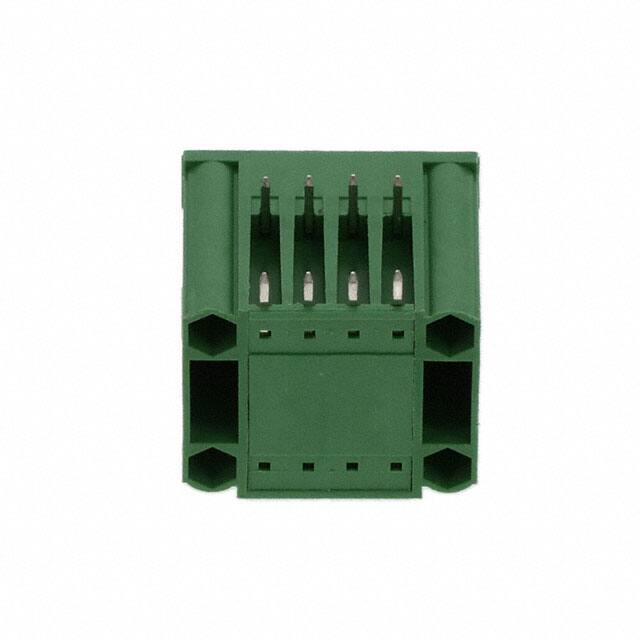

691328310008 Würth Elektronik WR-TBL 3283 series double level horizontal male PCB header with 8 positions (4 per level), 3.81mm pitch, rated 10A and 300VAC. Through hole solder termination with mating flange.
Mfr Part #:

691328310008

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL 3283 series double level horizontal male PCB header with 8 positions (4 per level), 3.81mm pitch, rated 10A and 300VAC. Through hole solder termination with mating flange.
✓ Total Stock: 10 pcs
$ Price Range: $3.98 - $6.07

691328310008 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691328310008 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Resistance
Current
Current Rating
Features
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Withstanding Voltage
Working Voltage
View Similar Products (0)

691328310008 Description

Short technical summary and product information.

The Würth Elektronik 691328310008 is a WR-TBL Series 3283 double level horizontal male PCB header designed for terminal block interconnect applications. It features 8 positions arranged in two levels of 4 positions each, with a 3.81mm pitch. The header is shrouded on four sides and includes a mating flange for secure connection.



Electrical ratings include a current rating of 10A and a working voltage of 300VAC, with a minimum withstanding voltage of 1.6kV and maximum contact resistance of 20 mOhm. The operating temperature range is -40°C to 105°C.



This through-hole component uses a right-angle (90°) orientation and solder termination. The insulator is made of green PA 66 with UL94 V-0 flammability rating. Contact pins are brass with tin plating, and the nut is brass M2.5. It is designed for JEDEC lead-free wave soldering processes.

691328310008 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Series: 3283
Canonical Name: Würth Elektronik WR-TBL Series 3283 3.81mm Double Level Horizontal Male PCB Header with Flanges
Subcategory: Terminal Block Header

691328310008 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691328310008 Estimated Pricing

Qty Low High
1+ $6.07 $6.07
10+ $5.54 $5.54
50+ $5.23 $5.23
100+ $4.81 $4.81
360+ $3.98 $3.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

691328310008 Features

  • 8 positions in two levels of 4.
  • 3.81mm pitch for compact designs.
  • Rated 10A and 300VAC operation.
  • Through hole right angle mounting.
  • Mating flange for secure connection.

691328310008 Applications

  • Used in industrial control systems.
  • Suitable for power supply connections.
  • Ideal for PLC and I/O modules.
  • Applied in building automation equipment.

691328310008 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

The pitch is 3.81mm (0.150 inches).

How many positions does this header have?

It has 8 positions total, arranged in two levels of 4 positions each.

What is the current rating?

The current rating is 10A.

What is the voltage rating?

The working voltage is 300VAC.

What is the mounting type?

Through hole mounting with right angle orientation and solder termination.

What is the operating temperature range?

-40°C to 105°C.

Is this component RoHS compliant?

Yes, the datasheet explicitly states RoHS compliant and lead free.
