| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Contact Pin Material | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Flammability Rating | |
| Header Orientation | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| Solder Tail Plating | |
| Soldering Process | |
| Termination Style | |
| Type | |
| Voltage | |
| Withstanding Voltage | |
| Working Voltage |

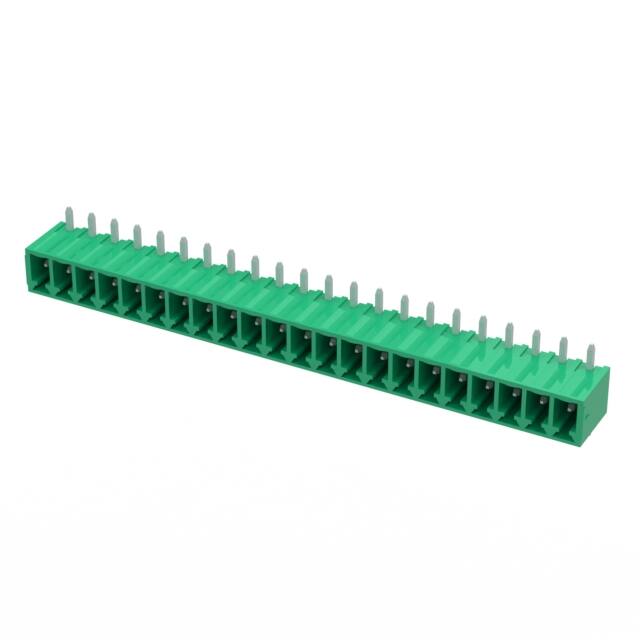

The Würth Elektronik 691322310022 is a WR-TBL Series 322, 3.81mm pitch, 22-position, right angle, through hole shrouded header. It features a green PA66 insulator with UL94 V-0 flammability rating and tin-plated brass contact pins.
Electrically, the header is rated for 10A current (cULus) and 300VAC working voltage, with a maximum contact resistance of 20 mOhm. It is designed for JEDEC lead free wave soldering processes and is RoHS compliant.
This component is suitable for general electronics equipment requiring a reliable, polarized connection for terminal block interfaces. The right angle orientation allows for space-saving PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.13 | $6.13 |
| 10+ | $5.57 | $5.57 |
| 50+ | $5.23 | $5.23 |
| 100+ | $4.78 | $4.78 |
| 360+ | $3.88 | $3.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.81 mm.
It has 22 positions.
The current rating is 10 A (cULus) and 10.5 A (VDE).
The working voltage is 300 VAC.
It uses through hole mounting.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS compliant.
