| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Resistance | |
| Current | |
| Header Orientation | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

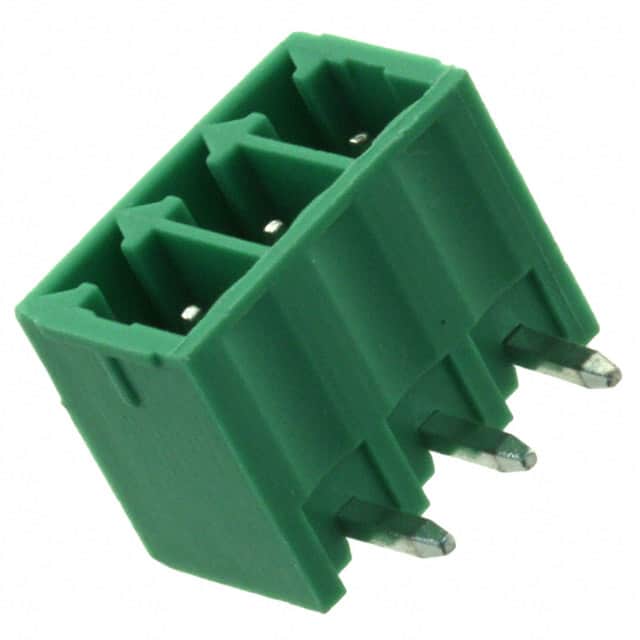

The Würth Elektronik 691322110003 is a WR-TBL Series 3221 3.50mm pitch horizontal PCB header. It features 3 positions in a single level with a right angle (90°) orientation, designed for through hole soldering. The header is shrouded on 4 sides and has a green PA66 insulator with tin-plated brass contacts.
Electrical ratings include a current rating of 10 A (cULus) / 10.5 A (VDE) and a working voltage of 300 VAC. Withstanding voltage is 1.6 kV (cULus) / 2.5 kV (VDE) with a maximum contact resistance of 20 mOhm. The operating temperature range is -40°C to 105°C.
The component is RoHS compliant, has a flammability rating of UL94 V-0, and is certified to cULus (E315414) and VDE (40023402) standards. Packaging is in box format.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.70 | $0.70 |
| 10+ | $0.62 | $0.62 |
| 50+ | $0.54 | $0.54 |
| 100+ | $0.48 | $0.48 |
| 250+ | $0.45 | $0.45 |
| 750+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.50 mm (0.138 inches).
It has 3 positions in a single level.
The current rating is 10 A (cULus) and 10.5 A (VDE).
The working voltage is 300 VAC.
It uses through hole mounting with solder termination.
It is certified to cULus (E315414) and VDE (40023402).
The operating temperature range is -40°C to 105°C.
