| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Resistance | |
| Current | |
| Header Orientation | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Working Voltage |

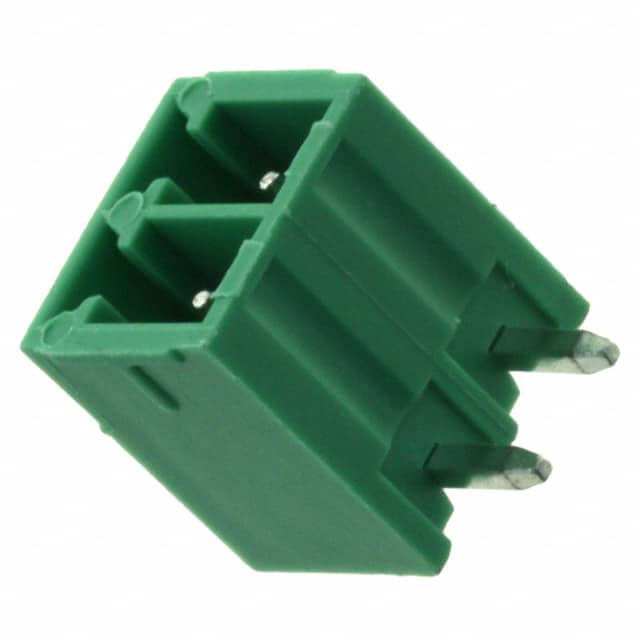

The Würth Elektronik 691322110002 is a 2-position, single-level shrouded header from the WR-TBL series 3221. It has a 3.5mm pitch and is designed for through-hole mounting with a right-angle orientation. The header features male pins with tin-plated contacts and a green PA66 insulator with a UL94 V-0 flammability rating.
It is rated for a working voltage of 300VAC and a current rating of 10A (cULus) or 10.5A (VDE). The contact resistance is 20mOhm maximum, and the withstanding voltage is 1.6kV (cULus) and 2.5kV (VDE). The header is suitable for wave soldering processes and is packaged in a box.
This component is RoHS compliant and lead-free. The manufacturer advises that it is intended for general electronic equipment and requires written approval for use in safety-critical applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.37 | $0.37 |
| 50+ | $0.32 | $0.32 |
| 100+ | $0.29 | $0.29 |
| 500+ | $0.27 | $0.27 |
| 1,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
3.5mm.
10A (cULus) and 10.5A (VDE).
300VAC (cULus/VDE).
Through-hole, right-angle.
-40°C to 105°C.
Yes, it is RoHS compliant and lead-free.
