691320510004 Würth Elektronik 691320510004 is a 5.08mm pitch double level male pin header with 4 positions, rated at 10A and 300V. It features a shrouded design with mating flange and is RoHS compliant.
Mfr Part #:

691320510004

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 691320510004 is a 5.08mm pitch double level male pin header with 4 positions, rated at 10A and 300V. It features a shrouded design with mating flange and is RoHS compliant.
✓ Total Stock: 6 pcs
$ Price Range: $5.83

691320510004 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691320510004 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Plating
Contact Resistance
Current
Current Rating
Features
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691320510004 Description

Short technical summary and product information.

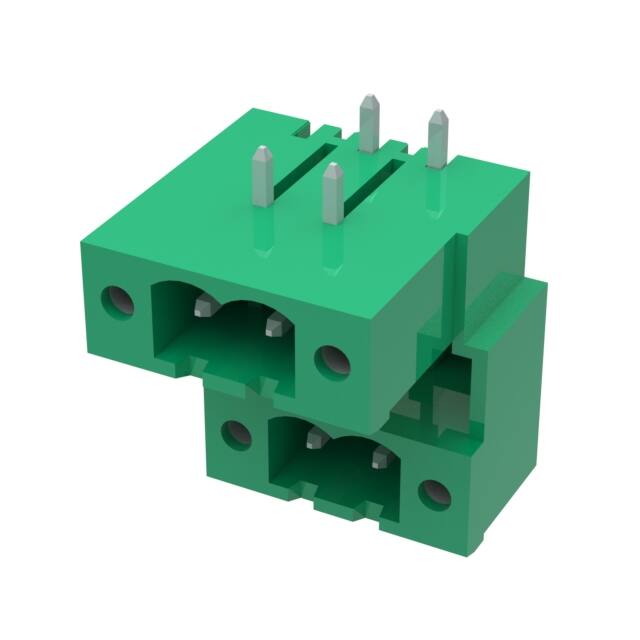

The Würth Elektronik 691320510004 is a 5.08mm pitch double level horizontal male PCB header from the WR-TBL series. It features 4 positions arranged in 2 levels with 2 positions per level, in a right-angle through-hole configuration. The header is shrouded on 4 sides and includes a mating flange for secure connections. The insulator is green PBT with UL94-V0 flammability rating. Contacts are made of brass with tin plating. The header is rated for 10A current and 300VAC voltage, with a contact resistance of 20mΩ maximum. It operates over a temperature range of -40°C to 105°C. This component is suitable for wire-to-board applications in industrial control, power supplies, and general electronics where reliable double-level connections are required. Packaging is in boxes, and the product is RoHS compliant and lead-free.

691320510004 Quick Information

Product Type: Terminal Block Header
Series: WR-TBL
Canonical Name: WR-TBL Series 5.08mm Double Level Horizontal Male PCB Header with Mating Flange
Subcategory: Male Headers

691320510004 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead Free

691320510004 Estimated Pricing

Qty Low High
70+ $5.83 $5.83

Estimated market price range - modelled values for guidance only, not live distributor offers.

691320510004 Features

  • 5.08mm pitch double level male header.
  • Rated for 10A current and 300VAC.
  • Right-angle through-hole mounting.
  • Shrouded design with mating flange.
  • RoHS compliant and lead-free.

691320510004 Applications

  • Ideal for wire-to-board connections in industrial controls.
  • Used in power supply units and distribution boards.
  • Suitable for double-level PCB stacking applications.
  • Common in automation and instrumentation systems.

691320510004 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

4 positions arranged in 2 levels with 2 positions per level.

What is the pitch of this header?

5.08mm (0.200 inches).

What is the current rating?

10 A.

What is the voltage rating?

300 VAC.

What is the mounting type?

Through Hole, right angle.

What is the operating temperature range?

-40°C to 105°C.

Is this header RoHS compliant?

Yes, it is RoHS compliant and lead-free.
