691319510012 Würth Elektronik WR-TBL Series 3195 double level right angle male header with 5.08mm pitch, 12 positions (6 per level), through hole solder termination, and tin plated contacts.
Mfr Part #:

691319510012

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 3195 double level right angle male header with 5.08mm pitch, 12 positions (6 per level), through hole solder termination, and tin plated contacts.
✓ Total Stock: 10 pcs
$ Price Range: $5.18 - $8.73

691319510012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691319510012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Halogen Free
Header Orientation
Industrial Grade
Insulator Material
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Withstanding Voltage
Working Voltage
View Similar Products (0)

691319510012 Description

Short technical summary and product information.

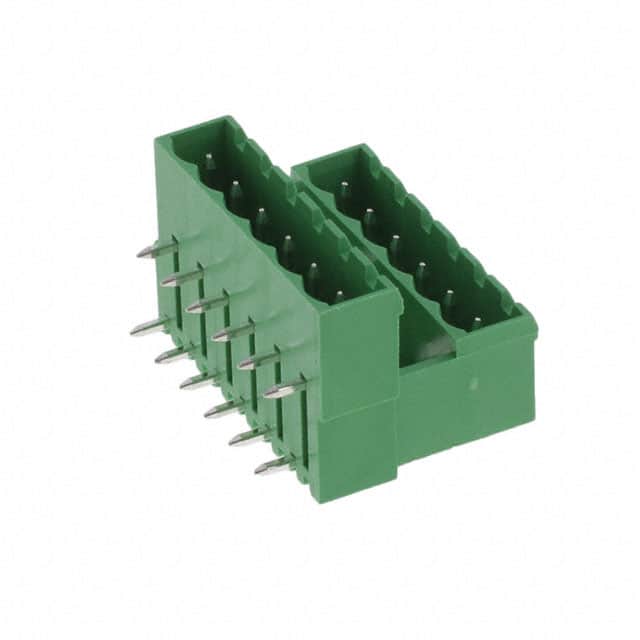

The Würth Elektronik 691319510012 is a WR-TBL Series 3195 double level right angle male PCB header designed for terminal block interconnect applications. It features a 5.08mm pitch, 12 positions arranged in two levels of 6 positions each, and a shrouded (4 side) design for secure mating.



Electrical ratings include a nominal current rating of 10A, working voltage of 300VAC, withstanding voltage of 1.6kV, and a maximum contact resistance of 20 mOhm. The insulator is made of green PBT with UL94-V0 flammability rating, and the contact pins are brass with tin plating.



This header is through hole mounted with right angle orientation, suitable for wave soldering processes. It is RoHS compliant and lead free, with an operating temperature range of -40°C to 105°C. Packaging is in box quantities.

691319510012 Quick Information

Product Type: Terminal Block Header
Series: 3195
Canonical Name: WR-TBL Series 3195, 5.08mm Pitch, Double Level, Right Angle, Shrouded Male Header, 12 Positions (6 per level), Through Hole, Tin Plated, Green PBT Insulator
Subcategory: Double Level Right Angle Header

691319510012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691319510012 Estimated Pricing

Qty Low High
1+ $8.73 $8.73
10+ $7.84 $7.84
50+ $7.31 $7.31
100+ $6.60 $6.60
400+ $5.18 $5.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

691319510012 Features

  • Double level right angle male header.
  • 5.08mm pitch with 12 positions total.
  • Rated for 10A and 300VAC operation.
  • Through hole solder termination with tin plating.
  • Green PBT insulator rated UL94-V0.

691319510012 Applications

  • Used in industrial control and automation systems.
  • Ideal for power supply and distribution boards.
  • Suitable for building automation and HVAC equipment.
  • Applied in test and measurement instrumentation.

691319510012 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691319510012 have?

It has 12 positions total, arranged in 2 levels with 6 positions per level.

What is the pitch of this header?

The pitch is 5.08mm (0.200 inches).

What is the current and voltage rating?

The current rating is 10A and the working voltage is 300VAC.

What mounting type does this header use?

It uses through hole mounting with right angle orientation and solder termination.

Is the 691319510012 RoHS compliant?

Yes, it is RoHS compliant and lead free.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What is the insulator material and flammability rating?

The insulator is made of green PBT with a UL94-V0 flammability rating.
