691317710012 Würth Elektronik WR-TBL series 5.00mm pitch horizontal PCB header with 12 male pins and integral mating flanges. Rated for 20 A and 300 V.
Mfr Part #:

691317710012

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL series 5.00mm pitch horizontal PCB header with 12 male pins and integral mating flanges. Rated for 20 A and 300 V.
✓ Total Stock: 12 pcs
$ Price Range: $4.48 - $5.35

691317710012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691317710012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Material
Contact Mating Finish
Contact Resistance
Current
Current Rating
Features
Header Orientation
Industrial Grade
Insulator Material
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Storage Temperature
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691317710012 Description

Short technical summary and product information.

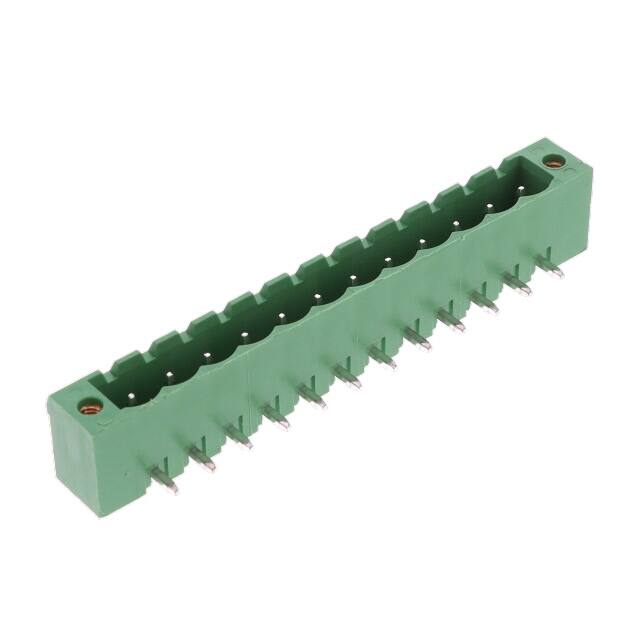

The Würth Elektronik 691317710012 is a WR-TBL series 5.00mm pitch horizontal PCB header designed for industrial terminal block interconnect systems. This shrouded male pin header provides 12 positions in a single level and features a right angle through-hole solder termination for wave soldering processes.



Key electrical ratings include 20 A continuous current and 300 V operating voltage, with a withstanding voltage of 1.6 kV (cULus) and 2.5 kV (VDE). The 20 mOhm maximum contact resistance ensures reliable signal continuity. The header is constructed with a PBT insulator (UL94 V-0 flammability rating) and brass contacts with tin plating.



Mechanical features include a threaded flange (M2.5 screw nuts) for secure mating with the corresponding plug connector. The green color housing aids in visual identification. Operating temperature range spans -40°C to 105°C.

691317710012 Quick Information

Product Type: Terminal Block Header
Series: 3177
Canonical Name: WR-TBL 5.00mm Horizontal PCB Header with Flanges, 12 Positions
Subcategory: Right Angle PCB Header

691317710012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free and RoHS

691317710012 Estimated Pricing

Qty Low High
1+ $5.35 $5.35
10+ $4.81 $4.81
50+ $4.48 $4.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

691317710012 Features

  • 12 positions on 5.00mm pitch.
  • Rated for 20 A and 300 V.
  • Right angle through-hole mounting.
  • Green PBT insulator with UL94 V-0 rating.
  • Includes M2.5 threaded mating flanges.

691317710012 Applications

  • Industrial control panel wiring systems.
  • Power distribution and PLC I/O modules.
  • Building automation and HVAC equipment.
  • Test and measurement instrument interfaces.
  • Railway signaling and transportation electronics.

691317710012 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 12 positions in a single level (12 positions per level).

What is the pitch of this terminal block header?

The pitch is 5.00 mm (0.197 inches).

What is the current and voltage rating?

The current rating is 20 A and the voltage rating is 300 V (both cULus and VDE).

What is the mounting type and orientation?

This header mounts through hole with a right angle (90°) orientation.

What materials are used for the insulator and contacts?

The insulator is PBT with a UL94 V-0 flammability rating. Contacts are brass with tin plating on the mating surface and solder tails.

What soldering process is recommended?

Wave soldering process only is recommended; reflow soldering is not specified.

Is this part RoHS compliant?

Yes, the datasheet confirms RoHS compliance and Lead Free status.
