691317510007 7-position, 5.08mm pitch, right angle shrouded header with mating flanges. Through hole termination, tin plated contacts, rated 20 A / 300 V.
Mfr Part #:

691317510007

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
7-position, 5.08mm pitch, right angle shrouded header with mating flanges. Through hole termination, tin plated contacts, rated 20 A / 300 V.
✓ Total Stock: 26 pcs
$ Price Range: $2.40 - $3.78

691317510007 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
26 pcs
On Request
26 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691317510007 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Features
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

691317510007 Description

Short technical summary and product information.

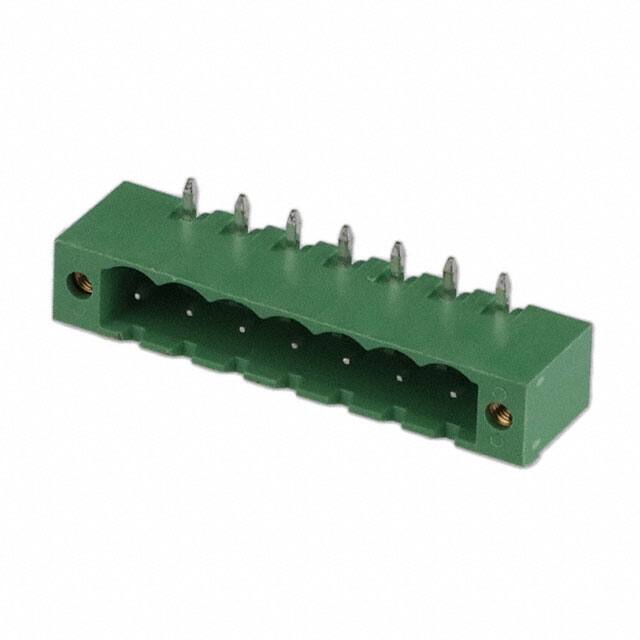

This WR-TBL Series 3175 terminal block header from Würth Elektronik provides a reliable, shrouded (4-side) connection for wire-to-board applications. It features 7 positions arranged in a single level at a 5.08mm pitch, with a right-angle orientation for space-constrained layouts.



Rated at 20 A and 300 V, the header uses brass contact pins with tin mating and solder tail plating. The insulator is made of green PBT with a UL94-V0 flammability rating. A mating flange is included for secure locking with the corresponding plug.



The component is designed for wave soldering only and comes packaged in a box. It is RoHS3 compliant and lead free, with an operating temperature range of -40°C to 105°C.

691317510007 Quick Information

Product Type: Terminal Block Header
Series: 3175
Canonical Name: Header, Male Pins, Shrouded (4 Side), 7 Position, 5.08mm Pitch, Right Angle, Through Hole, Tin, Green, Mating Flange
Subcategory: Right Angle Header

691317510007 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691317510007 Estimated Pricing

Qty Low High
1+ $3.78 $3.78
10+ $3.44 $3.44
50+ $3.23 $3.23
100+ $2.95 $2.95
360+ $2.40 $2.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

691317510007 Features

  • 7 positions with 5.08mm pitch.
  • Right angle orientation, through hole.
  • Rated 20 A and 300 V.
  • Tin plated brass contacts.
  • Mating flange for secure locking.

691317510007 Applications

  • Power supply and distribution panels.
  • Industrial control and automation.
  • Building and home automation.
  • Heavy equipment and machinery.

691317510007 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

7 positions in a single level.

What is the pitch?

5.08mm (0.200 inches).

What is the current rating?

20 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole, with solder termination.
