691317410012 WR-TBL Series 3174 7.62mm close horizontal PCB header with flanges, 12 positions, 20A current rating, 300VAC working voltage, through-hole solder termination.
Mfr Part #:

691317410012

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
WR-TBL Series 3174 7.62mm close horizontal PCB header with flanges, 12 positions, 20A current rating, 300VAC working voltage, through-hole solder termination.
✓ Total Stock: 10 pcs
$ Price Range: $2.92 - $4.61

691317410012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691317410012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Color
Contact Material
Contact Mating Finish
Contact Resistance
Current
Current Rating
Features
Halogen Free
Header Orientation
Industrial Grade
Insulator Material
Lead Spacing
Lead Style
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Withstanding Voltage
Working Voltage
View Similar Products (0)

691317410012 Description

Short technical summary and product information.

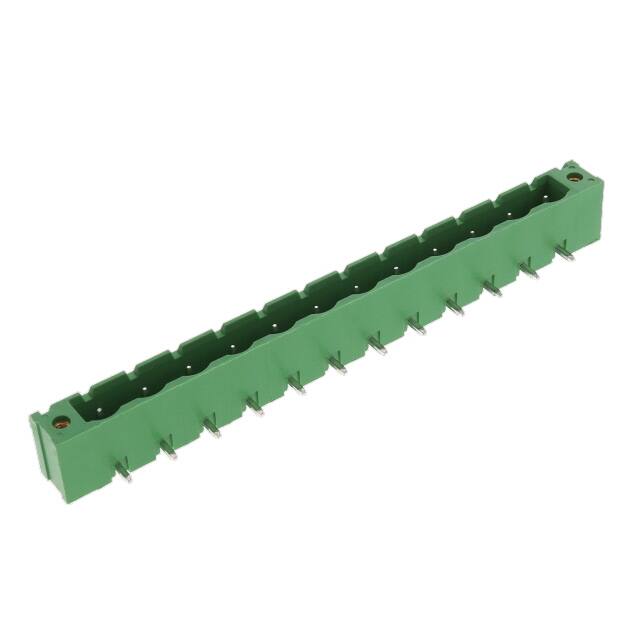

The Würth Elektronik 691317410012 is a 12-position, single-level terminal block header from the WR-TBL Series 3174. It features a 7.62mm pitch and a right-angle (90°) orientation, designed for through-hole soldering on PCBs. The header is shrouded on four sides and includes a mating flange for secure connection.



Electrical ratings include a cULus current rating of 20A, a working voltage of 300VAC, a withstanding voltage of 1.6kV, and a maximum contact resistance of 20 mOhm. The insulator is made of green PBT with a UL94 V-0 flammability rating. Contacts are brass with tin plating on both the mating surface and solder tails. The flanges use brass M2.5 screw nuts.



The component is RoHS compliant and lead-free, with an operating temperature range of -40°C to 105°C. Soldering is specified for wave process only. Packaging is in boxes.

691317410012 Quick Information

Product Type: Terminal Block Header
Series: 3174
Canonical Name: WR-TBL Series 3174 7.62mm Close Horizontal PCB Header with Flanges, 12 Positions
Subcategory: PCB Headers

691317410012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: No

691317410012 Estimated Pricing

Qty Low High
1+ $4.61 $4.61
10+ $4.19 $4.19
50+ $3.93 $3.93
100+ $3.60 $3.60
375+ $2.92 $2.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

691317410012 Features

  • 20A current rating with 300VAC working voltage.
  • 12 positions on 7.62mm pitch in right-angle orientation.
  • Shrouded header with mating flange for secure connection.
  • Green PBT insulator rated UL94 V-0 flammability.
  • RoHS compliant and lead-free construction.

691317410012 Applications

  • Used in industrial control and automation systems.
  • Ideal for power distribution terminal blocks.
  • Suitable for PCB-to-wire connections in panels.
  • Applied in HVAC and building management equipment.

691317410012 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 691317410012?

20 A (cULus).

What is the working voltage?

300 VAC.

What is the pitch of this header?

7.62 mm (0.300 inches).

How many positions does this header have?

12 positions.

What is the mounting type?

Through hole, right angle orientation.

What is the operating temperature range?

-40°C to 105°C.

Is this component RoHS compliant?

Yes, RoHS compliant and lead-free.
