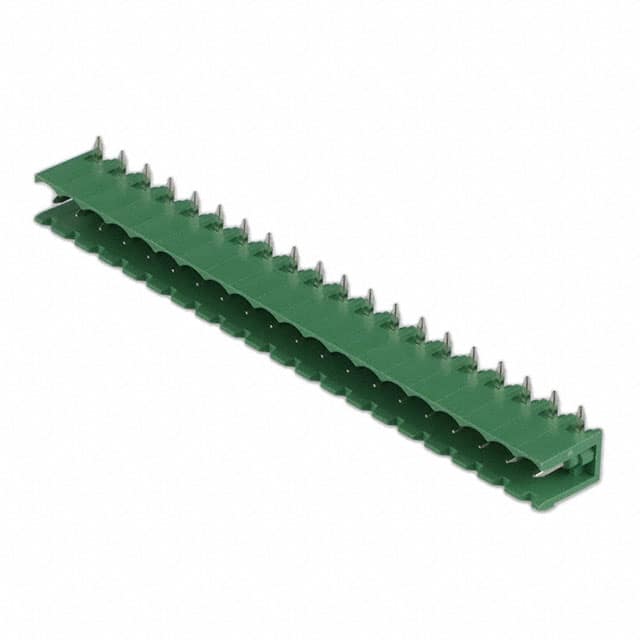

691312510020 20-position 5.08mm pitch right-angle through-hole terminal block header from Würth Elektronik. Rated for 20A, 300V, with tin-plated contacts and green PA66 insulator.
Mfr Part #:

691312510020

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
20-position 5.08mm pitch right-angle through-hole terminal block header from Würth Elektronik. Rated for 20A, 300V, with tin-plated contacts and green PA66 insulator.
✓ Total Stock: 33 pcs
$ Price Range: $3.13 - $4.94

691312510020 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
33 pcs
On Request
33 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691312510020 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

691312510020 Description

Short technical summary and product information.

The Würth Elektronik 691312510020 is a 20-position, 5.08mm pitch terminal block header from the WR-TBL series. It features a right-angle orientation with through-hole mounting for solder termination. The header is shrouded on two sides, providing polarization and keying for secure mating with compatible plugs. The green insulator is made of PA66 with UL94-V0 flammability rating. Contact pins are brass with tin plating on both mating surface and solder tails. Electrical ratings include 20A current and 300V voltage, with withstand voltage of 1.6kV (cULus) and 2.5kV (VDE). Operating temperature range is -40°C to 105°C. This component is designed for wave soldering only and is packaged in a box. It is RoHS compliant and lead-free. Typical applications include industrial control, power distribution, and building automation where reliable wire-to-board connections are required.

691312510020 Quick Information

Product Type: Header, Male Pins, Shrouded
Series: 312
Canonical Name: Header, Male Pins, Shrouded (2 Side), 20 Positions, 5.08mm Pitch, Through Hole, Right Angle, Tin, Green
Subcategory: Terminal Block Headers

691312510020 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691312510020 Estimated Pricing

Qty Low High
1+ $4.94 $4.94
10+ $4.48 $4.48
50+ $4.21 $4.21
100+ $3.85 $3.85
360+ $3.13 $3.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

691312510020 Features

  • 20-position, 5.08mm pitch right-angle header.
  • Rated for 20A and 300VAC.
  • Shrouded for secure mating.
  • Through-hole mounting with tin-plated contacts.
  • UL94-V0 rated PA66 insulator.

691312510020 Applications

  • Industrial automation and control systems.
  • Power distribution and supply units.
  • Building management and HVAC equipment.
  • Lighting and LED driver connections.

691312510020 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691312510020 have?

20 positions.

What is the pitch of this terminal block header?

5.08mm (0.200 inch).

What is the current rating?

20A.

What is the voltage rating?

300VAC.

What is the mounting type?

Through hole, right angle orientation.

What is the operating temperature range?

-40°C to 105°C.

What certifications does this part have?

cULus and VDE approved, with withstand voltages of 1.6kV and 2.5kV respectively.
