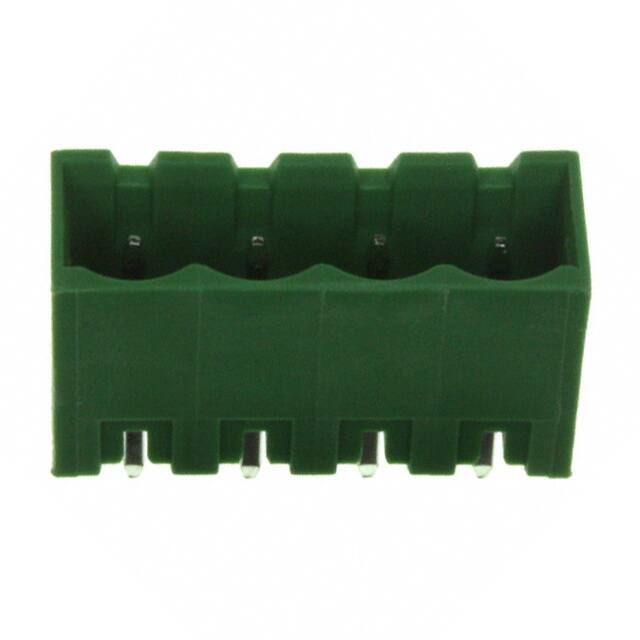

691311500104 The 691311500104 is a 4-position vertical PCB header with 5.08mm pitch from Würth Elektronik's WR-TBL Series 311. It is rated for 20A and 300VAC, with through-hole solder termination and green PBT insulator.
Mfr Part #:

691311500104

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The 691311500104 is a 4-position vertical PCB header with 5.08mm pitch from Würth Elektronik's WR-TBL Series 311. It is rated for 20A and 300VAC, with through-hole solder termination and green PBT insulator.
✓ Total Stock: 300 pcs
$ Price Range: $0.51 - $0.56

691311500104 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691311500104 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Resistance
Current
Current Rating
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Working Voltage
View Similar Products (0)

691311500104 Description

Short technical summary and product information.

The Würth Elektronik 691311500104 is a 4-position vertical PCB header from the WR-TBL Series 311, designed for printed circuit board mounting. It features a 5.08mm pitch and a shrouded male pin configuration with tin-plated contacts. The insulator is made of green PBT with a UL94-V0 flammability rating.



Electrical ratings include a nominal current of 20A and a working voltage of 300VAC, with withstanding voltage ratings of 1.6kV (cULus) and 2.5kV (VDE). Maximum contact resistance is 20 mOhm. The operating temperature range is -40°C to 105°C. Termination is through-hole solder, wave process only.



Packaging is in a box. The product is RoHS compliant and lead-free. This header is suitable for industrial and commercial terminal block applications requiring reliable wire-to-board connections.

691311500104 Quick Information

Product Type: Terminal Block Header
Series: 311
Canonical Name: Würth Elektronik WR-TBL Series 311 4-Position Vertical PCB Header, 5.08mm Pitch
Subcategory: PCB Headers

691311500104 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

691311500104 Estimated Pricing

Qty Low High
1+ $0.56 $0.56
10+ $0.51 $0.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

691311500104 Features

  • 4-position vertical PCB header with 5.08mm pitch.
  • Rated for 20A and 300VAC operation.
  • Through-hole solder termination, wave process only.
  • Green PBT insulator with UL94-V0 rating.
  • RoHS compliant and lead-free.

691311500104 Applications

  • Industrial control and automation terminal blocks.
  • Power supply and distribution wiring systems.
  • Building automation and HVAC equipment connections.
  • General-purpose wire-to-board interconnect applications.

691311500104 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

4 positions.

What is the pitch of this header?

5.08mm (0.200 inches).

What is the current rating?

20A (cULus and VDE both rated 20A).

What is the working voltage?

300VAC (cULus and VDE both rated 300VAC).

What is the mounting type?

Through-hole.

What is the operating temperature range?

-40°C to 105°C.

What is the contact mating finish?

Tin.
