| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Header Orientation | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

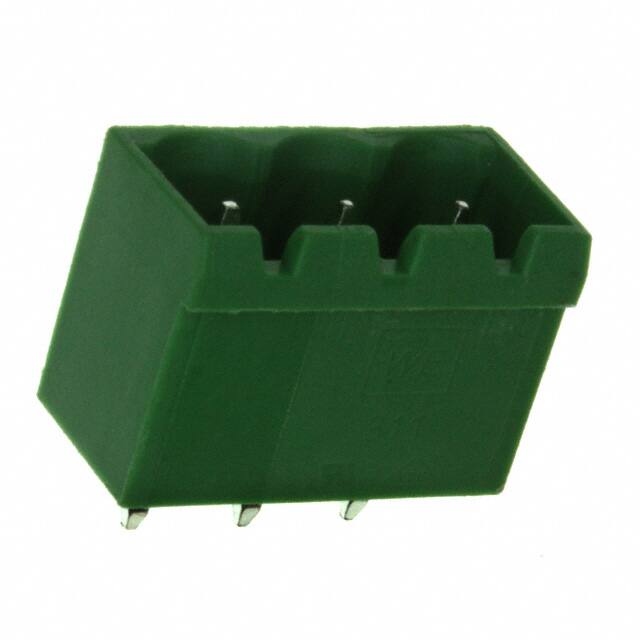

The Würth Elektronik 691311500103 is a WR-TBL Series 311 vertical PCB header designed for terminal block interconnect applications. This shrouded header features 3 positions arranged in a single level with a 5.08mm pitch, making it suitable for compact wiring solutions.
Rated for 20A current and 300V voltage, the header offers robust electrical performance. It is certified to cULus and VDE standards, with withstanding voltages of 1.6kV (cULus) and 2.5kV (VDE). Contact resistance is a maximum of 20mΩ.
The insulator is molded from green PBT material with a UL94-V0 flammability rating. Contact pins are brass with tin plating on both the mating surface and solder tails. The component is designed for wave soldering only and is packaged in a box. Operating temperature range is -40°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 3 positions arranged in a single level.
The pitch is 5.08mm (0.200 inches).
The current rating is 20A and the voltage rating is 300V.
It is a through hole mounting component with solder termination.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant and lead free.
It is certified to cULus and VDE standards, with withstanding voltages of 1.6kV and 2.5kV respectively.
