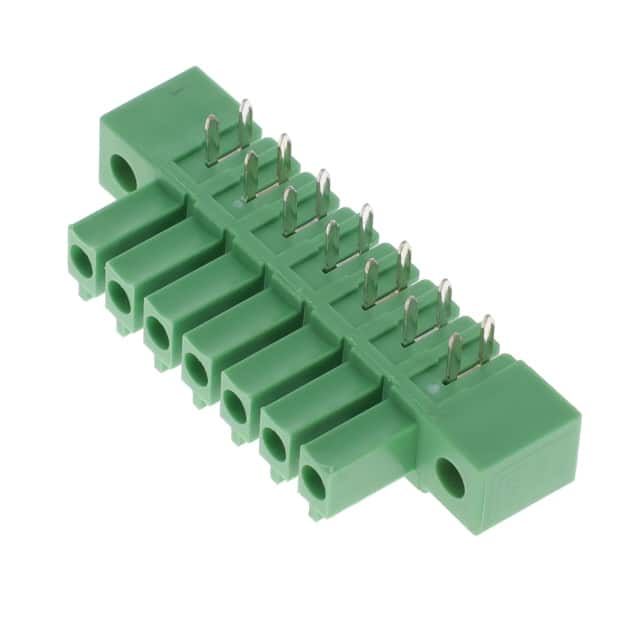

691310340007 This is a 7-position 3.81mm pitch terminal block header from Würth Elektronik. It features a through-hole right-angle mounting with tin-plated contacts and a green PA66 insulator.
Mfr Part #:

691310340007

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This is a 7-position 3.81mm pitch terminal block header from Würth Elektronik. It features a through-hole right-angle mounting with tin-plated contacts and a green PA66 insulator.
✓ Total Stock: 3 pcs
$ Price Range: $3.46

691310340007 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691310340007 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Plating
Contact Resistance
Contact Type
Current
Current Rating
Features
Header Orientation
Industrial Grade
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Operating Temperature Range
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691310340007 Description

Short technical summary and product information.

The Würth Elektronik 691310340007 is a 7-position terminal block header with a 3.81mm pitch, designed for through-hole right-angle mounting. It is part of the WR-TBL 3103 series. The header features female sockets with tin-plated copper alloy contacts and a green PA66 insulator rated UL94 V-0. Electrically, it is rated for 8A current and 300V voltage, with a maximum contact resistance of 20 mOhm and a withstanding voltage of 1.6 kV. The operating temperature range is -40°C to 115°C. A mating flange is included for secure connection. The component is RoHS compliant and lead-free. It is intended for general electronic equipment; for high-reliability applications such as automotive or medical, written approval from Würth Elektronik is required.

691310340007 Quick Information

Product Type: Terminal Block Header
Series: 3103
Canonical Name: Terminal Block Header, Female Sockets, 7 Positions, 3.81mm Pitch, Through Hole, Right Angle
Subcategory: Female Sockets

691310340007 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691310340007 Estimated Pricing

Qty Low High
150+ $3.46 $3.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

691310340007 Features

  • 7-position 3.81mm pitch terminal block header.
  • Rated for 8A current and 300V voltage.
  • Right-angle through-hole mounting design.
  • Features a mating flange for secure connection.
  • UL94 V-0 flammability rated green PA66 insulator.

691310340007 Applications

  • Suitable for general purpose electronic equipment.
  • Used in industrial control and automation systems.
  • Ideal for power supply and distribution boards.

691310340007 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

7 positions

What is the pitch of this terminal block?

3.81 mm

What is the current rating?

8 A

What is the voltage rating?

300 V

What is the mounting type?

Through hole, right angle

What is the operating temperature range?

-40°C to 115°C

What is the contact material and finish?

Copper alloy with tin plating
