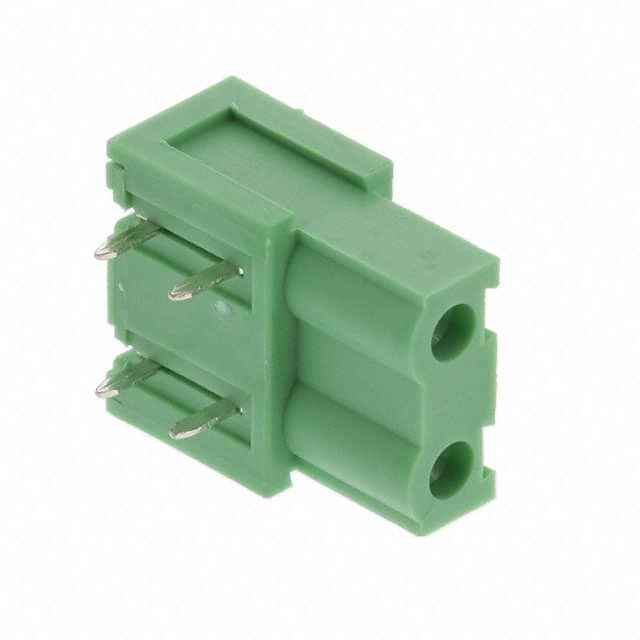

691309410002 Würth Elektronik WR-TBL Series 3094 2-position 7.62mm pitch right-angle female header for through-hole solder mounting. Rated at 20A and 300V.
Mfr Part #:

691309410002

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 3094 2-position 7.62mm pitch right-angle female header for through-hole solder mounting. Rated at 20A and 300V.
✓ Total Stock: 30 pcs
$ Price Range: $1.17 - $1.97

691309410002 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691309410002 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Material
Contact Mating Finish
Contact Resistance
Current
Current Rating
Features
Halogen Free
Header Orientation
Industrial Grade
Insulator Material
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691309410002 Description

Short technical summary and product information.

The Würth Elektronik 691309410002 is a WR-TBL Series 3094 2-position, single-level, 7.62mm pitch female header with a right-angle orientation. Designed for through-hole soldering (wave process only), this header features a green PA66 insulator with UL94 V-0 flammability rating. Contacts are brass with tin mating finish; wire guards are phosphor bronze tin plated. Retention latches secure the mating plug. Suitable for power distribution and control applications.

691309410002 Quick Information

Product Type: Terminal Block Header
Series: 3094
Canonical Name: Würth Elektronik WR-TBL Series 3094 7.62mm 2-Position Right Angle Female Header
Subcategory: Female Header (Reversed Gender)

691309410002 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

691309410002 Estimated Pricing

Qty Low High
1+ $1.97 $1.97
10+ $1.77 $1.77
50+ $1.65 $1.65
100+ $1.49 $1.49
300+ $1.17 $1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

691309410002 Features

  • 2-position 7.62mm pitch right-angle header.
  • Rated for 20A current and 300V voltage.
  • UL94 V-0 flammability rated insulator.
  • Through-hole wave solder termination only.
  • Includes retention latches for secure mating.

691309410002 Applications

  • Power distribution in industrial control panels.
  • Building automation and HVAC equipment.
  • Factory automation and I/O modules.
  • Power supply and converter interconnect.

691309410002 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

This connector has 2 positions.

What is the pitch of this terminal block header?

The pitch is 7.62mm.

What is the current rating of this header?

The current rating is 20A.

What is the voltage rating?

The working voltage is 300VAC.

What mounting type does this part use?

It is through-hole mounted with wave soldering only.

What is the operating temperature range?

-40°C to 105°C.
