| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Resistance | |
| Contact Type | |
| Current | |
| Current Rating | |
| Features | |
| Header Orientation | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

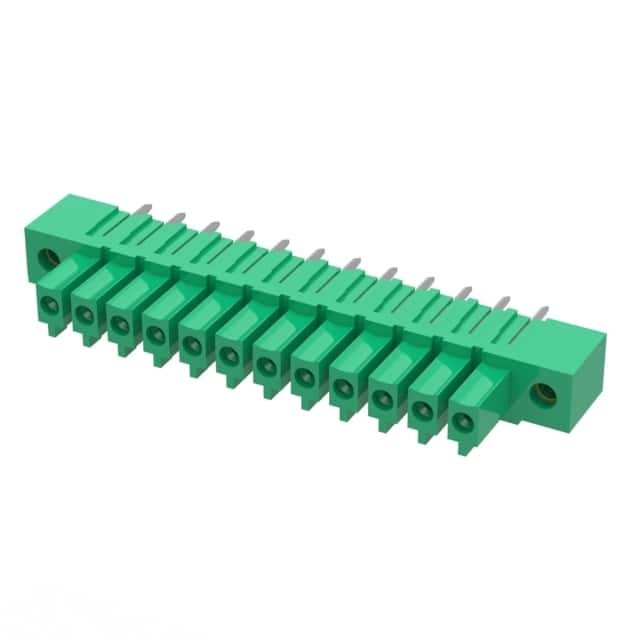

The Würth Elektronik 691308330012 is a 12-position, single level vertical header designed for terminal block applications. It features a 3.81mm pitch and through hole mounting with solder termination. The header has female socket contacts made of copper alloy with tin plating, and a stamped contact type. The insulator is PA66 with a green color and UL94 V-0 flammability rating. It includes a mating flange and brass M2.5 flanges nuts for secure connection. Electrical ratings include 8A current and 300VAC voltage, with a withstand voltage of 1.6kV and contact resistance of 20mΩ maximum. Operating temperature ranges from -40°C to 115°C. It is RoHS compliant and supports JEDEC lead-free wave soldering process. Packaging is in boxes.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.15 | $6.15 |
| 10+ | $5.58 | $5.58 |
| 50+ | $5.24 | $5.24 |
| 100+ | $4.78 | $4.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
3.81mm.
8 A.
300 V.
Through Hole.
-40°C to 115°C.
UL94 V-0.
