| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Resistance | |
| Contact Type | |
| Current | |
| Current Rating | |
| Features | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Withstanding Voltage |

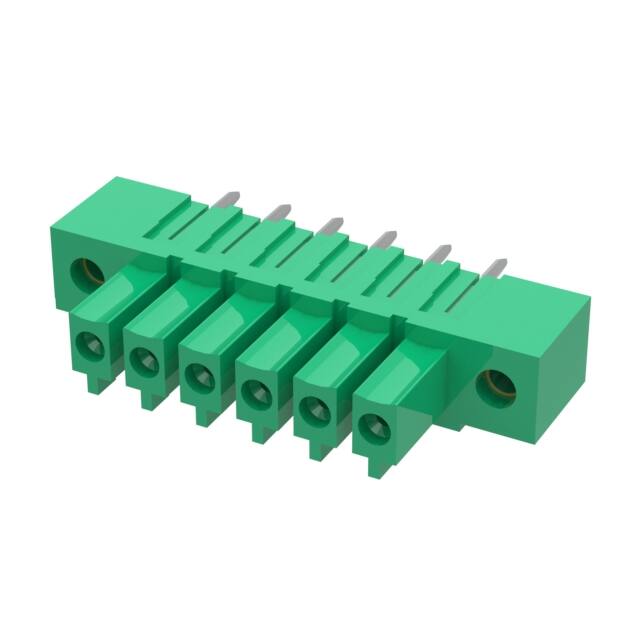

The Würth Elektronik 691308330006 is a 6 position, single level terminal block header with a 3.81mm pitch. It features a through hole mounting type with solder termination and a vertical orientation. The header is designed for use with female sockets and includes a mating flange for secure connection.
Electrical ratings include a current rating of 8A and a voltage rating of 300V. The contact resistance is 20 mOhm maximum, and the withstanding voltage is 1.6kV. The operating temperature range is -40°C to 115°C.
The insulator is made of PA66 with a UL94-V0 flammability rating and is colored green. Contacts are made of copper alloy with a tin plating and are stamped type. The component is RoHS compliant and lead free. Packaging is in a box.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.54 | $4.54 |
| 10+ | $3.79 | $3.79 |
| 50+ | $3.33 | $3.33 |
| 100+ | $2.73 | $2.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 691308330006 has 6 positions in a single level.
The pitch is 3.81mm (0.150 inches).
The current rating is 8A.
The voltage rating is 300V.
The mounting type is through hole.
The operating temperature range is -40°C to 115°C.
Yes, it is RoHS3 compliant and lead free.
