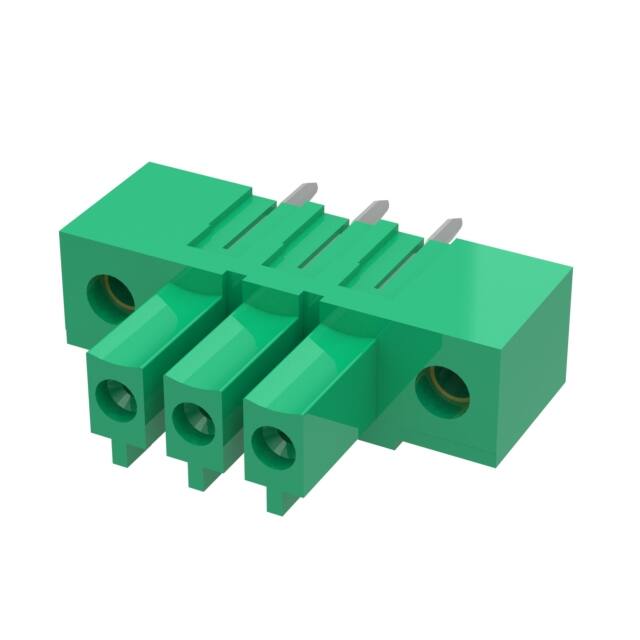

691308330003 Würth Elektronik 691308330003 is a 3-position, 3.81mm pitch, vertical terminal block header with female sockets, through-hole mounting, and a mating flange.
Mfr Part #:

691308330003

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 691308330003 is a 3-position, 3.81mm pitch, vertical terminal block header with female sockets, through-hole mounting, and a mating flange.
✓ Total Stock: 5 pcs
$ Price Range: $1.78 - $2.97

691308330003 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691308330003 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Material
Contact Mating Finish
Contact Plating
Contact Resistance
Contact Type
Current
Current Rating
Features
Halogen Free
Header Orientation
Industrial Grade
Insulator Material
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691308330003 Description

Short technical summary and product information.

The Würth Elektronik 691308330003 is a 3-position terminal block header from the 3083 series. It features a 3.81mm pitch and a vertical orientation, designed for through-hole soldering. The header uses female socket contacts made of copper alloy with tin plating, housed in a green PA66 insulator rated UL94-V0.



Electrically, the header is rated for 8A current and 300V working voltage, with a withstanding voltage of 1.6kV and a maximum contact resistance of 20 mOhm. It includes a mating flange with a brass M2.5 nut for secure connection. The operating temperature range is -40°C to 115°C.



This component is RoHS compliant and lead-free, suitable for wave soldering processes. It is packaged in a box and is intended for general electronic equipment applications.

691308330003 Quick Information

Product Type: Terminal Block Header
Series: 3083
Canonical Name: Terminal Block Header, Female Sockets, 3 Positions, 3.81mm Pitch, Vertical, Through Hole
Subcategory: Terminal Block Headers

691308330003 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691308330003 Estimated Pricing

Qty Low High
1+ $2.97 $2.97
10+ $2.48 $2.48
50+ $2.18 $2.18
100+ $1.78 $1.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

691308330003 Features

  • 3-position vertical terminal block header.
  • 3.81mm pitch with through-hole mounting.
  • Rated for 8A current and 300V voltage.
  • Green PA66 insulator rated UL94-V0.
  • Includes mating flange with brass M2.5 nut.

691308330003 Applications

  • Used in industrial control and automation systems.
  • Suitable for power supply and distribution boards.
  • Ideal for building and home automation equipment.
  • Applicable in general electronic equipment assemblies.

691308330003 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the 691308330003 terminal block header?

The pitch is 3.81mm (0.150 inches).

How many positions does this header have?

It has 3 positions.

What is the current rating of the 691308330003?

The current rating is 8A.

What is the voltage rating of this terminal block header?

The working voltage is 300VAC.

What mounting type does the 691308330003 use?

It uses through-hole mounting.

What is the operating temperature range?

The operating temperature range is -40°C to 115°C.

Is the 691308330003 RoHS compliant?

Yes, it is RoHS compliant and lead-free.
