| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Plating | |
| Current | |
| Current Rating | |
| Features | |
| Header Orientation | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

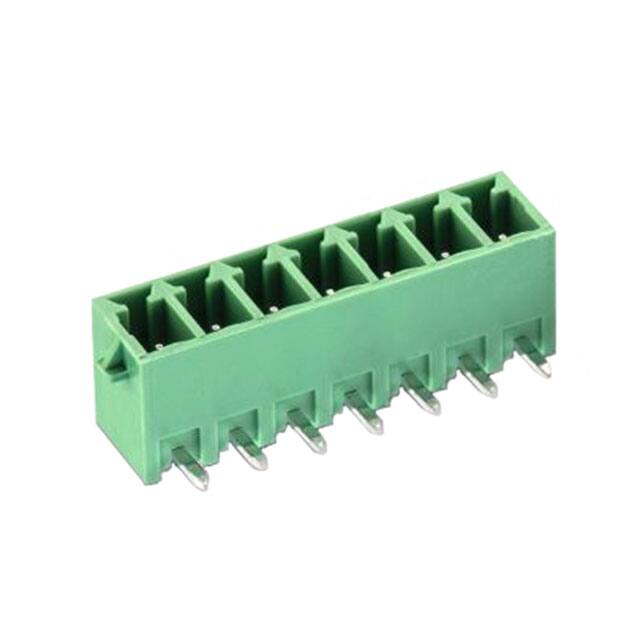

The Würth Elektronik 691305340007 is a 7-position terminal block header from the WR-TBL Series 3053 family. It features a 3.81mm pitch and right-angle orientation, making it suitable for compact PCB layouts where space is constrained. The header is shrouded on 4 sides and includes a locking ramp for secure mating.
The header is rated for 12A current and 300V voltage with an operating temperature range of -40°C to +105°C. It uses copper alloy contacts with a tin mating finish and a PA66 insulator with a UL94 V-0 flammability rating.
The part is through-hole mounted with solder termination. The series also supports 2 to 6 positions with varying pin-to-pin spans and lengths.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.48 | $1.48 |
| 10+ | $1.30 | $1.30 |
| 50+ | $1.18 | $1.18 |
| 100+ | $1.05 | $1.05 |
| 500+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 7 positions.
The pitch is 3.81mm (0.150 inches).
The current rating is 12A.
The voltage rating is 300V.
The header uses through-hole mounting.
The operating temperature range is -40°C to +105°C.
The insulator has a UL94 V-0 flammability rating.
