| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
82 pcs
|
82 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Features | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Rated Current | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range | |
| Withstanding Voltage | |
| Working Voltage |

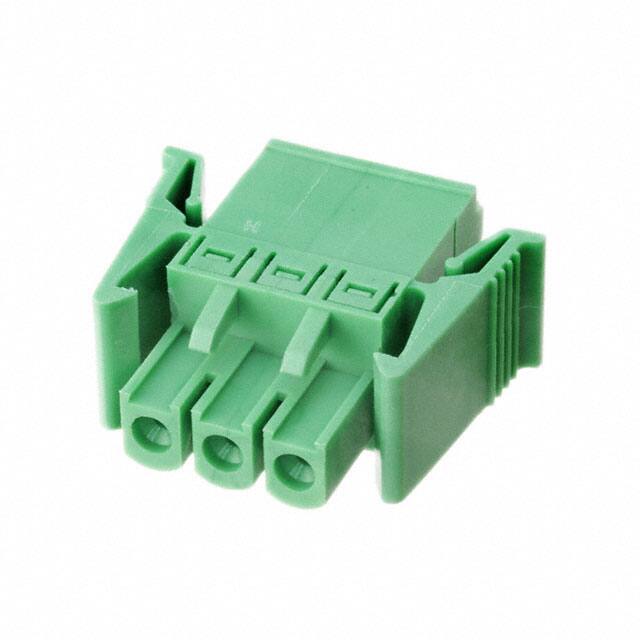

The Würth Elektronik 691304530003 is a WR-TBL Series 3045 plug with female sockets, featuring a 5.08mm pitch and 3 positions in a single level. It utilizes a screwless push-in termination method for quick and reliable wire connections, supporting both solid and stranded wires from 26 to 14 AWG (0.2 to 1.5 mm²). The plug is designed for free hanging (in-line) mounting with a 180° wire entry, and includes a latch lock for secure mating.
Electrical ratings include a rated current of 12A, working voltage of 300V, and withstanding voltage of 1600V for 1 minute. Contact resistance is a maximum of 20 mΩ. The insulator is made of PA66 with UL94 V-0 flammability rating, and contacts are copper alloy with tin over nickel plating, while the spring is stainless steel. Operating temperature ranges from -40°C to 105°C.
This product is RoHS and REACH compliant, and carries cULus certification (E315414). It is suitable for a wide range of industrial and commercial wiring applications where a compact, reliable plug connector is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.21 | $5.21 |
| 10+ | $4.77 | $4.77 |
| 25+ | $4.25 | $4.25 |
| 50+ | $3.73 | $3.73 |
| 120+ | $3.47 | $3.47 |
| 240+ | $3.21 | $3.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 3 positions.
The pitch is 5.08 mm.
The rated current is 12 A.
The working voltage is 300 V.
Free hanging (in-line) mounting.
It accepts solid and stranded wires from 26 to 14 AWG (0.2 to 1.5 mm²).
-40°C to 105°C.
