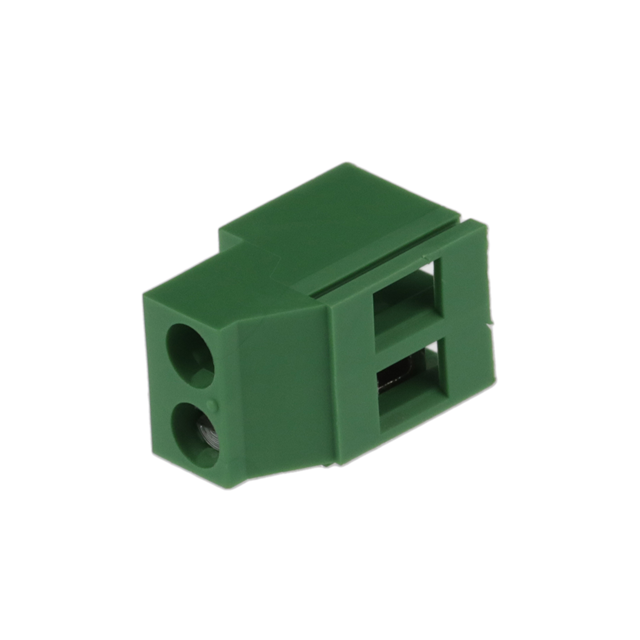

691253610001 Würth Elektronik WR-TBL Series 2536 1-position 10.16mm pitch wire-to-board terminal block with screw rising cage clamp termination.
Mfr Part #:

691253610001

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 2536 1-position 10.16mm pitch wire-to-board terminal block with screw rising cage clamp termination.
✓ Total Stock: 10 pcs
$ Price Range: $0.46 - $0.72

691253610001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691253610001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Resistance
Current
Features
Insulator Material
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Operating Temperature
Pitch
Positions Per Level
Screw Size
Torque
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

691253610001 Description

Short technical summary and product information.

The Würth Elektronik WR-TBL Series 2536 691253610001 is a 1-position, single level wire-to-board terminal block with a 10.16mm (0.400") pitch and horizontal wire entry. It features a screw rising cage clamp termination for secure wire connection accepting 30-12 AWG solid and stranded wire.



Electrically, it is rated for 16A at 300VAC under UL and 24A at 450VAC under VDE standards, with a maximum contact resistance of 20 mΩ. The insulator is made of PA6/66 with a UL94 V-0 flammability rating, and the terminal screw is steel with a zinc finish. The metal housing and wire guard are copper alloy with nickel+tin plating.



Designed for through-hole mounting with a horizontal mating orientation, this terminal block supports interlocking side stacking for multi-position assemblies. It operates over a temperature range of -30°C to +120°C and is compatible with JEDEC lead-free wave soldering processes.

691253610001 Quick Information

Product Type: Terminal Block
Series: 2536
Canonical Name: WR-TBL Series 2536 10.16mm 1-Position Single Level Screw Rising Cage Clamp Terminal Block
Subcategory: Screw Rising Cage Clamp

691253610001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691253610001 Estimated Pricing

Qty Low High
1+ $0.72 $0.72
10+ $0.66 $0.66
50+ $0.62 $0.62
100+ $0.56 $0.56
500+ $0.46 $0.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

691253610001 Features

  • Single position 10.16mm pitch terminal block.
  • Screw rising cage clamp wire termination.
  • UL rated 16A at 300VAC and VDE 24A at 450VAC.
  • Accepts 12-30 AWG solid and stranded wire.
  • Interlocking side feature for multi-position builds.

691253610001 Applications

  • Ideal for industrial power supply connections.
  • Used in general electronics wire-to-board applications.
  • Suitable for lighting and automation control panels.
  • Perfect for high-current PCB terminal interfaces.

691253610001 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 691253610001 terminal block have?

This terminal block has 1 position (single level).

What is the pitch of the 691253610001?

The pitch is 10.16mm (0.400 inches).

What are the current and voltage ratings for this terminal block?

Under UL: 16A at 300VAC. Under VDE: 24A at 450VAC. Withstanding voltage is 1.6kV (UL) / 2.5kV (VDE).

What wire gauge can be used with the 691253610001?

It accepts 12-30 AWG solid and stranded wire with a strip length of 6mm.

What type of mounting does the 691253610001 use?

It is a through-hole mounting terminal block with horizontal wire entry.
