691252810001 This WR-TBL terminal block features a 10.00mm pitch with screw-rising cage clamp termination. It is rated for 16A (UL) / 24A (VDE) and 300VAC (UL) / 750VAC (VDE), accepting 12-30 AWG wire.
Mfr Part #:

691252810001

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This WR-TBL terminal block features a 10.00mm pitch with screw-rising cage clamp termination. It is rated for 16A (UL) / 24A (VDE) and 300VAC (UL) / 750VAC (VDE), accepting 12-30 AWG wire.
✓ Total Stock: 10 pcs
$ Price Range: $0.78 - $1.29

691252810001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691252810001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Resistance
Current
Features
Insulator Material
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Operating Temperature
Pitch
Positions Per Level
Screw Size
Torque
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

691252810001 Description

Short technical summary and product information.

The Würth Elektronik 691252810001 is a 1-position wire-to-board terminal block from the WR-TBL 2528 series. It features a 10.00mm pitch and uses a screw-rising cage clamp termination mechanism, ideal for secure wire connections in power distribution and industrial control applications.



Electrical ratings include 16A (UL) / 24A (VDE) current capacity and 300VAC (UL) / 750VAC (VDE) working voltage, with withstanding voltage up to 1.6kV (UL) / 3kV (VDE). Contact resistance is 20 mΩ maximum, ensuring reliable conductivity. The terminal block accommodates solid and stranded wires from 30-12 AWG with a 6 mm strip length.



Mechanically, the insulator is made of PA6/66 with UL94V0 flammability rating. Operating temperature ranges from -30°C to +120°C. The through-hole mounting type allows for direct PCB soldering. Side interlocking feature enables multiple units to be combined without losing pitch spacing. Packaging is in box format.

691252810001 Quick Information

Product Type: Wire-to-Board Terminal Block
Series: 2528

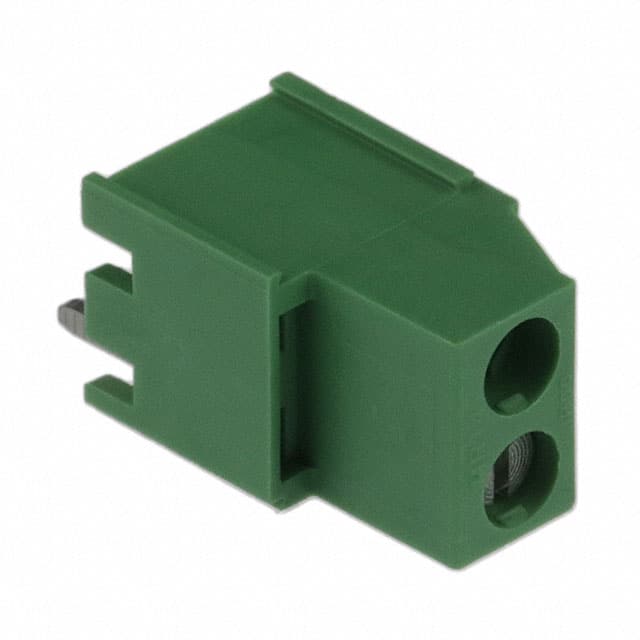

Canonical Name: WR-TBL 10.00mm Pitch, 1 Position, Through Hole, Screw-Rising Cage Clamp Terminal Block
Subcategory: Wire-to-Board Terminal Block

691252810001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691252810001 Estimated Pricing

Qty Low High
1+ $1.29 $1.29
10+ $1.16 $1.16
50+ $1.09 $1.09
100+ $0.99 $0.99
400+ $0.78 $0.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

691252810001 Features

  • 10.00mm pitch for high-density wiring.
  • Rated 16A (UL) and 24A (VDE) current.
  • Rising cage clamp wire termination.
  • Accepts 12-30 AWG solid and stranded wire.
  • UL94V0 flammability rated insulator.

691252810001 Applications

  • Ideal for wire-to-board connections in industrial controls.
  • Used in power distribution terminal blocks.
  • Suitable for high-vibration environments due to robust clamping.
  • Compatible with PCB layouts requiring 10mm spacing.
  • Can be side-interlocked for multi-position assemblies.

691252810001 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

It has 1 position per level with 1 level, so a total of 1 position.

What is the pitch of the terminal block?

The pitch is 10.00 mm (0.394 inches).

What are the current ratings?

UL rated 16 A, VDE rated 24 A.

What are the voltage ratings?

UL rated 300 VAC, VDE rated 750 VAC.

What is the mounting type?

Through Hole.

What wire gauge range does it accept?

It accepts 12-30 AWG solid and stranded wire.

What is the operating temperature range?

-30°C to +120°C.
