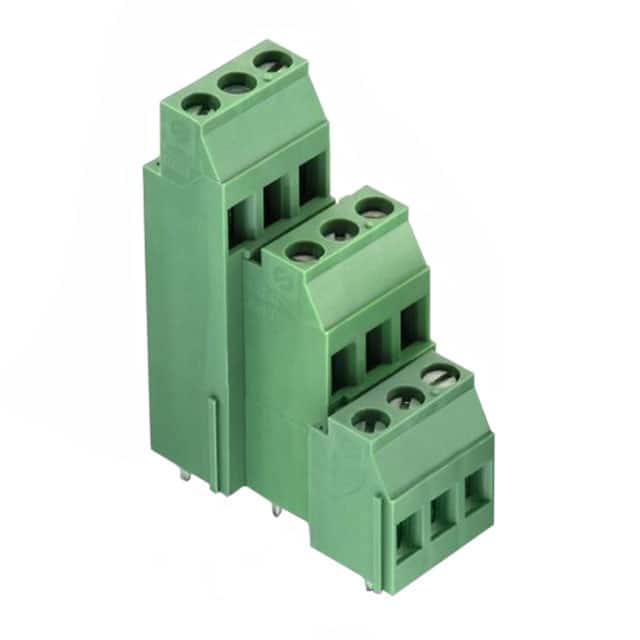

The Würth Elektronik 691247510009 is a triple level wire-to-board terminal block from the WR-TBL Series 2475. It features 9 positions arranged across 3 levels (3 positions per level) on a 5.08mm pitch, enabling dense signal or power connections in a compact, side-entry package.
Electrical ratings include a rated current of 20 A (UL and VDE), with UL working voltage of 300 V AC and VDE working voltage of 450 V AC. Withstanding voltage is 1600 V AC (UL) and 2500 V AC (VDE), and contact resistance is 20 mΩ. This block accepts wire gauges from 12 to 30 AWG (solid 3.31 to 0.05 mm²) with a 6 mm strip length, making it suitable for a wide range of power and signal wiring.
The insulator is made of PA6/66 with UL94 V-0 flammability rating. Contacts are copper alloy with nickel plating. The mounting type is through hole, and the mating orientation is horizontal with the board. Side interlocking features allow multiple blocks to be ganged together for larger pin counts. Operating temperature range is -30 °C to +120 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.52 | $10.52 |
| 10+ | $9.21 | $9.21 |
| 50+ | $8.34 | $8.34 |
| 100+ | $7.45 | $7.45 |
| 500+ | $7.17 | $7.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The block has 9 positions total, arranged as 3 positions per level across 3 levels.
The pitch is 5.08 mm (0.200 inches).
Rated current is 20 A. Rated voltage is 300 V AC (UL) and 450 V AC (VDE).
It accepts 12 to 30 AWG wire (solid section 3.31 to 0.05 mm²) with a 6 mm strip length.
Operating temperature is -30 °C to +120 °C.
Yes, the block features side interlocking for ganging multiple blocks together.
