| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Resistance | |
| Current | |
| Current Rating (Nominal @ UL) | |
| Current Rating (Nominal @ VDE) | |
| Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| Screw Size | |
| Soldering | |
| Terminal Screw Material | |
| Torque | |
| Voltage | |
| Voltage Rating (Nominal @ UL) | |
| Voltage Rating (Nominal @ VDE) | |
| Wire Gauge | |
| Wire Guard Material | |
| Wire Strip Length | |
| Wire Termination | |
| Withstanding Voltage (Minimum @ UL) | |
| Withstanding Voltage (Minimum @ VDE) |

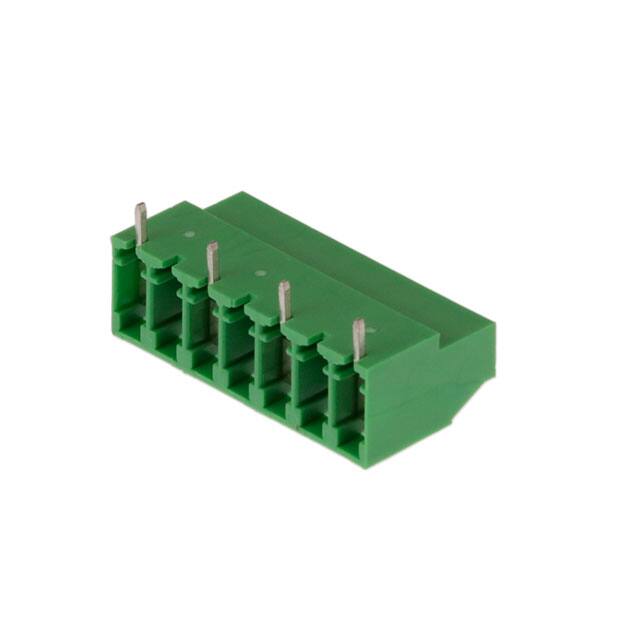

The Würth Elektronik 691244800004 is a 4-position, single-level wire-to-board terminal block from the WR-TBL Series 2448. It features a 10.00mm pitch and a through hole mounting style with vertical mating orientation relative to the board. The rising cage clamp wire termination accepts solid or stranded wire from 30 AWG to 12 AWG with a 6 mm strip length.
Electrically, the terminal block is rated for 16 A (UL) and 24 A (VDE) with working voltages of 300 VAC (UL) and 750 VAC (VDE). Withstanding voltage is 1.6 kV (UL) and 3 kV (VDE). Contact resistance is 20 mΩ maximum. The M3 screw requires a torque of 0.5 Nm.
The insulator is made of green PA6/66 polyamide with a UL94V-0 flammability rating. Terminal screw material is steel with zinc plating, and the wire guard is copper alloy with nickel and tin plating. Operating temperature range is -30°C to +120°C. The component is RoHS compliant and lead free, and is packaged in a box.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.33 | $5.33 |
| 10+ | $4.75 | $4.75 |
| 50+ | $4.40 | $4.40 |
| 100+ | $3.94 | $3.94 |
| 500+ | $3.02 | $3.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 10.00 mm.
It has 4 positions per level, with 1 level.
The current rating is 16 A under UL standards and 24 A under VDE standards.
The voltage rating is 300 VAC under UL standards and 750 VAC under VDE standards.
The mounting type is Through Hole.
It accepts 12-30 AWG solid or stranded wire.
The operating temperature range is -30°C to +120°C.
