| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Flammability Rating | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| Screw Size | |
| Terminal Screw Material | |
| Terminal Screw Plating | |
| Torque | |
| Voltage | |
| Wire Gauge | |
| Wire Guard Material | |
| Wire Guard Plating | |
| Wire Strip Length | |
| Wire Termination | |
| Withstanding Voltage (Minimum @ VDE) | |
| Withstanding Voltage (Minimum @ cULus) | |
| Working Voltage (Nominal @ UL) | |
| Working Voltage (Nominal @ VDE) |

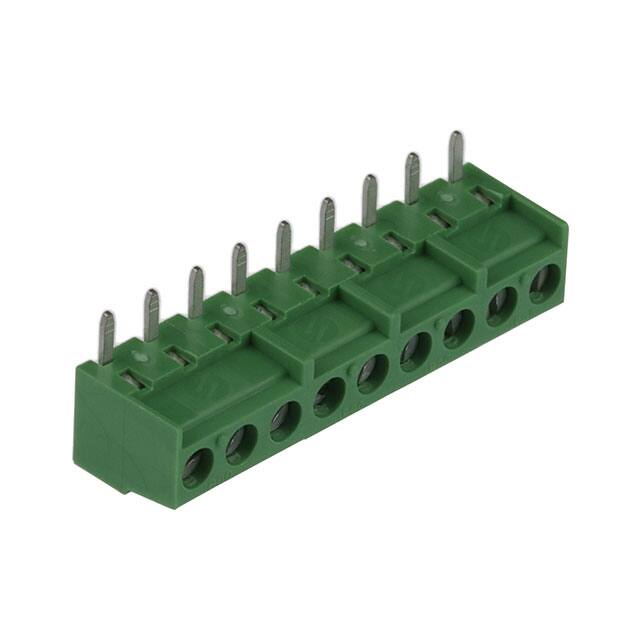

The Würth Elektronik 691243300009 is a 9-position wire-to-board terminal block from the WR-TBL Series 2433. It features a 3.81mm pitch and a vertical mounting orientation with a screw rising cage clamp termination. The insulator is made of green PA6/66 with UL94 V-0 flammability rating, and the contacts are copper alloy with nickel over tin plating. The terminal screw is steel with zinc plating, and the wire guard is copper alloy with nickel over tin plating.
Electrical ratings include a current rating of 10A, working voltage of 300VAC (UL) and 130VAC (VDE), with withstanding voltage of 1600VAC (cULus) and 1250VAC (VDE). Contact resistance is 20mΩ maximum. The terminal block accepts wire sizes from 30 to 16 AWG (0.05-1.31 mm²) with a wire strip length of 6mm. The recommended torque is 0.3 Nm (2.5 Lb.In).
This component is designed for general electronics equipment and is suitable for applications requiring reliable wire-to-board connections. It is packaged in a box and is RoHS compliant and lead-free. The operating temperature range is -30°C to +120°C.
| Qty | Low | High |
|---|---|---|
| 200+ | $5.09 | $5.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
3.81mm.
10A.
300VAC (UL) and 130VAC (VDE).
Through hole.
Screw - Rising Cage Clamp.
30-16 AWG (0.05-1.31 mm²).
