Mfr Part #:

691241800005

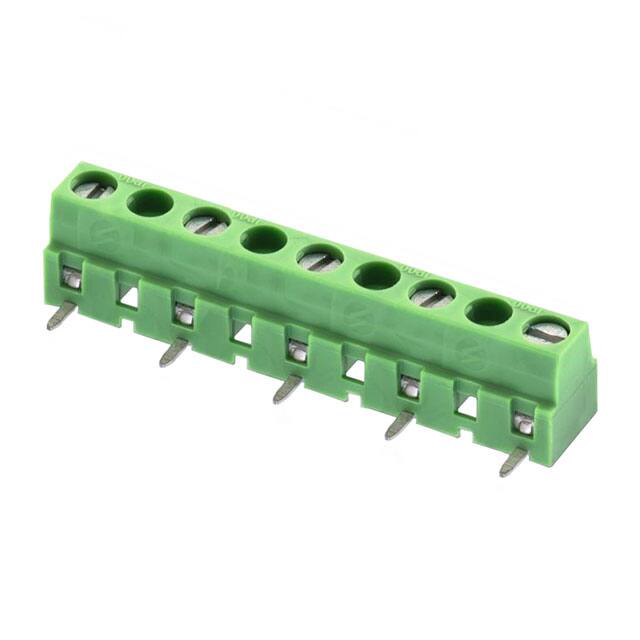

Würth Elektronik WR-TBL Series 2418 wire to board terminal block with 5 positions, 10mm pitch, rated 14A at 300V, through hole mounting, green insulator.

✓ Total Stock: 15 pcs

$ Price Range: $1.52 - $2.24

691241800005 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	15 pcs On Request	15 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

691241800005 Description

Short technical summary and product information.

The Würth Elektronik 691241800005 is a WR-TBL Series 2418 wire to board terminal block featuring 5 positions in a single level with a 10mm pitch. It is designed for vertical wire entry and through hole PCB mounting, using a screw rising cage clamp termination for secure wire connections.

Rated at 14A (UL and VDE) with a working voltage of 300V (UL) and 750V (VDE), this terminal block accepts wire gauges from 14 to 30 AWG. The insulator is made of PA6/66 with a UL94 V-0 flammability rating, and contacts are copper alloy with nickel plating. The operating temperature range is -30°C to +120°C.

This component is suitable for power distribution and signal wiring applications in industrial control, lighting, and power supply equipment. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).

691241800005 Quick Information

Product Type: Wire to Board Terminal Block

Series: 2418

Canonical Name: WR-TBL Series 2418 5 Position 10mm Pitch Vertical Entry Wire to Board Terminal Block with Rising Cage Clamp

Subcategory: Wire to Board

691241800005 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Non-Compliant

Lead Free: Lead free

691241800005 Estimated Pricing

Qty	Low	High
1+	$2.24	$2.24
10+	$1.96	$1.96
50+	$1.77	$1.77
100+	$1.58	$1.58
500+	$1.52	$1.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

691241800005 Features

5 positions with 10mm pitch.
Rated 14A at 300V (UL).
Screw rising cage clamp termination.
Through hole vertical entry mounting.
Green PA6/66 insulator, UL94 V-0.

691241800005 Applications

Power distribution in industrial controls.
Wiring for lighting and LED drivers.
Signal connections in power supplies.
General purpose PCB wire termination.

691241800005 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 691241800005 terminal block have?

It has 5 positions in a single level.

What is the pitch of this terminal block?

The pitch is 10.00mm.

What is the current and voltage rating?

Rated current is 14A (UL and VDE). Working voltage is 300V (UL) and 750V (VDE).

What wire gauge does this terminal block accept?

It accepts solid wire from 14 to 30 AWG (2.08 to 0.0509 mm²).

What is the mounting type?

Through hole mounting with vertical wire entry.

What is the operating temperature range?

-30°C up to +120°C.

Is this component RoHS compliant?

Yes, it is RoHS3 compliant and lead free.

Category	Wire to Board
Manufacturer Name	Würth Elektronik
Color	Green
Contact Material	Copper Alloy
Contact Plating	Nickel
Contact Resistance	20 mΩ
Current	14 A
Insulator Flammability Rating	UL94 V-0
Insulator Material	PA6/66
Lead Spacing	10.0 mm
Lead Style	Rising Cage Clamp
Length	45 mm
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature	-30 °C up to +120 °C
Pitch	10.00mm
Positions Per Level	5
Screw Size	M3
Voltage	300 V
Wire Gauge	14-30 AWG
Wire Termination	Screw - Rising Cage Clamp
