691241610003 3 position, single level wire to board terminal block with 10.16mm pitch, through hole mounting, and rising cage clamp screw termination. Rated 14A and 300V (UL).
Mfr Part #:

691241610003

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
3 position, single level wire to board terminal block with 10.16mm pitch, through hole mounting, and rising cage clamp screw termination. Rated 14A and 300V (UL).
✓ Total Stock: 18 pcs
$ Price Range: $0.70 - $1.04

691241610003 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691241610003 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Plating
Contact Resistance
Current
Halogen Free
Industrial Grade
Insulator Flammability Rating
Insulator Material
Lead Spacing
Mating Orientation
Military Grade
Mounting Type
Number of Levels
Operating Temperature Range
Pitch
Positions Per Level
SVHC Present
Screw Size
Tape & Reel
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

691241610003 Description

Short technical summary and product information.

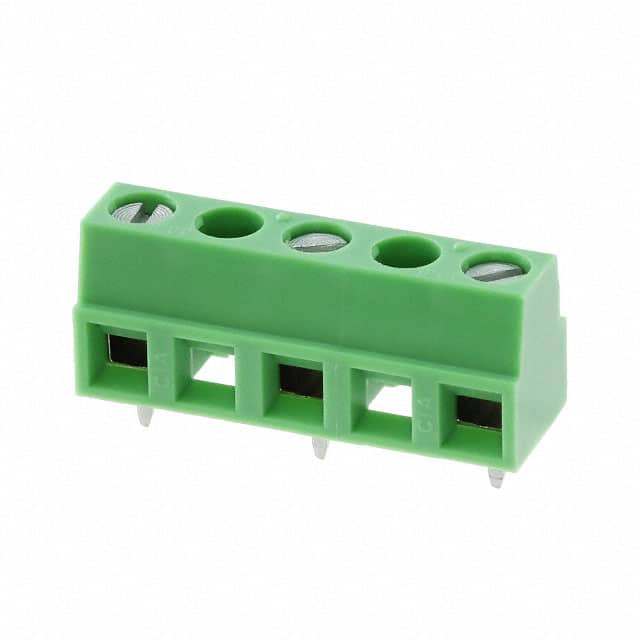

The Würth Elektronik 691241610003 is a 3 position, single level wire to board terminal block from the WR-TBL Series 2416. It features a 10.16mm (0.400") pitch and a horizontal with board mating orientation. The through hole mounting style uses a screw - rising cage clamp wire termination, accepting 14-30 AWG wire with a 6mm strip length. The tightening torque is 0.5 Nm with an M3 screw.



Electrically, this terminal block is rated for 14A current and 300V working voltage (UL) or 750V (VDE). Withstanding voltage is 1600V (UL) and 3000V (VDE) for 1 minute. Contact resistance is 20 mΩ. The insulator is made of green PA6/66 with a UL94 V-0 flammability rating. Contacts are copper alloy with nickel plating.



The operating temperature range is -30°C to +120°C. The overall length is 25.4mm with a centerline pin spacing of 20.32mm. This component is RoHS3 compliant and lead free.

691241610003 Quick Information

Product Type: Wire to Board Terminal Block
Series: 2416
Canonical Name: WR-TBL Series 2416 3 Position 10.16mm Pitch Through Hole Wire to Board Terminal Block
Subcategory: Wire to Board

691241610003 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691241610003 Estimated Pricing

Qty Low High
1+ $1.04 $1.04
10+ $0.92 $0.92
50+ $0.83 $0.83
100+ $0.75 $0.75
600+ $0.70 $0.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

691241610003 Features

  • 3 position single level terminal block.
  • 10.16mm pitch for high density wiring.
  • Rated 14A and 300V UL / 750V VDE.
  • Screw rising cage clamp wire termination.
  • Through hole mounting with horizontal orientation.

691241610003 Applications

  • Industrial control and automation systems.
  • Power supply and distribution boards.
  • Building automation and HVAC equipment.
  • Lighting and LED driver connections.

691241610003 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

This terminal block has 3 positions in a single level.

What is the pitch of this terminal block?

The pitch is 10.16mm (0.400").

What is the current rating?

The rated current is 14 A.

What is the voltage rating?

The working voltage is 300 V (UL) and 750 V (VDE).

What mounting type does this terminal block use?

It uses through hole mounting.

What wire gauge is supported?

It accepts 14-30 AWG wire.

What is the operating temperature range?

The operating temperature range is -30°C to +120°C.
