| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Features | |
| Industrial Grade | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Length | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pin to Pin (Middle) | |
| Pitch | |
| Positions Per Level | |
| Rated Current (Nominal @ UL) | |
| Rated Current (Unspecified condition) | |
| SVHC Present | |
| Screw Size | |
| Solid Wire Section (@ Metric) | |
| Stranded Wire Section (Metric) | |
| Tape & Reel | |
| Terminal Screw Material | |
| Terminal Screw Plating | |
| Termination Style | |
| Tightening Torque | |
| Voltage | |
| Wire Gauge | |
| Wire Guard Material | |
| Wire Strip Length | |
| Wire Termination | |
| rated_current (Nominal @ VDE) | |
| withstanding_voltage (Minimum @ UL) | |
| withstanding_voltage (Minimum @ VDE) | |
| working_voltage (Nominal @ UL) | |
| working_voltage (Nominal @ VDE) | |
| working_voltage (Unspecified condition) |

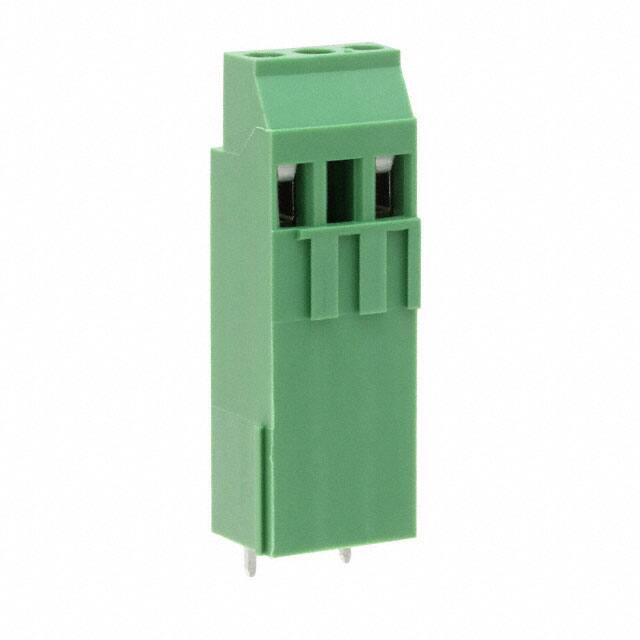

The 691235610002 is a 2-position wire-to-board terminal block from Würth Elektronik's WR-TBL series. It features a 10.16mm pitch and is designed for horizontal wire entry with a screw rising cage clamp termination. The block is rated for 20A current (UL/VDE) and 300V working voltage (UL) or 750V (VDE), with a withstanding voltage of 1600V (UL) and 3000V (VDE). It accepts wire gauges from 12 to 30 AWG (solid/stranded 3.31 to 0.05 mm²) and requires a strip length of 6mm and a tightening torque of 0.5 Nm.
The insulator is made of PA6/66 with UL94 V-0 flammability rating, and contacts are copper alloy with nickel plating. The terminal screw is steel with zinc plating, and the wire guard is copper alloy with tin over nickel. The block is green in color and has a length of 15.24mm.
It is through-hole mounted and mates horizontally with the board. Features include high wire entry level and interlocking (front and side) for secure stacking. Operating temperature range is -30°C to 120°C. This product is RoHS and lead-free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.40 | $4.40 |
| 10+ | $3.84 | $3.84 |
| 50+ | $3.48 | $3.48 |
| 100+ | $3.11 | $3.11 |
| 500+ | $2.93 | $2.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
10.16mm.
20A (UL and VDE).
300V AC (UL) / 750V AC (VDE).
Through hole.
12-30 AWG (solid and stranded).
-30°C to 120°C.
