| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Length | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Screw Size | |
| Tape & Reel | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

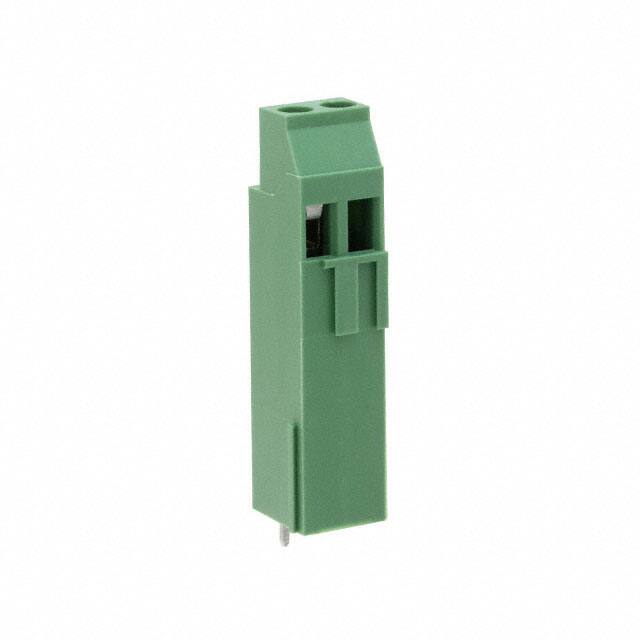

The Würth Elektronik 691235610001 is a single-position wire-to-board terminal block from the WR-TBL 2356 series. It features a 10.16 mm pitch and a screw rising cage clamp wire termination, providing a reliable and secure connection for solid or stranded wires from 12 to 30 AWG with a strip length of 6 mm. The through hole mounting with horizontal mating orientation relative to the board simplifies assembly in space-constrained designs.
Electrically, the component is rated for a nominal current of 20 A under both UL and VDE conditions. Working voltage ratings are 300 V (UL) and 750 V (VDE AC). Withstanding voltage values reach 1600 V (UL) and 3000 V (VDE), with a maximum contact resistance of 20 mΩ. The operating temperature range spans -30 °C to +120 °C.
Mechanically, the terminal block uses M3 screws with a tightening torque of 0.5 N·m. The insulator is green PA6/66 with a UL94 V-0 flammability rating. Contacts are copper alloy with nickel plating, and the terminal screw is zinc-plated steel. The wire guard is copper alloy with tin over nickel plating. The component includes interlocking features on the front and side for multi-position assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.58 | $2.58 |
| 10+ | $2.26 | $2.26 |
| 50+ | $2.04 | $2.04 |
| 100+ | $1.83 | $1.83 |
| 500+ | $1.72 | $1.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 position per level, with 1 level (1 pole total).
10.16 mm (0.4 inches).
20 A (both UL and VDE).
300 V (UL) and 750 V (VDE AC).
Through hole, with horizontal mating orientation relative to the board.
Solid or stranded wires from 12 to 30 AWG.
-30 °C to +120 °C.
