| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Features | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pin to Pin (Middle) | |
| Pitch | |
| Positions Per Level | |
| Screw Size | |
| Solid Wire Section | |
| Stranded Wire Section | |
| Tape & Reel | |
| Terminal Screw Material | |
| Terminal Screw Plating | |
| Tightening Torque | |
| Voltage | |
| VoltageRating (@ UL) | |
| VoltageRating (@ VDE) | |
| Wire Gauge | |
| Wire Strip Length | |
| Wire Termination | |
| WithstandingVoltage (Minimum @ UL) | |
| WithstandingVoltage (Minimum @ VDE) |

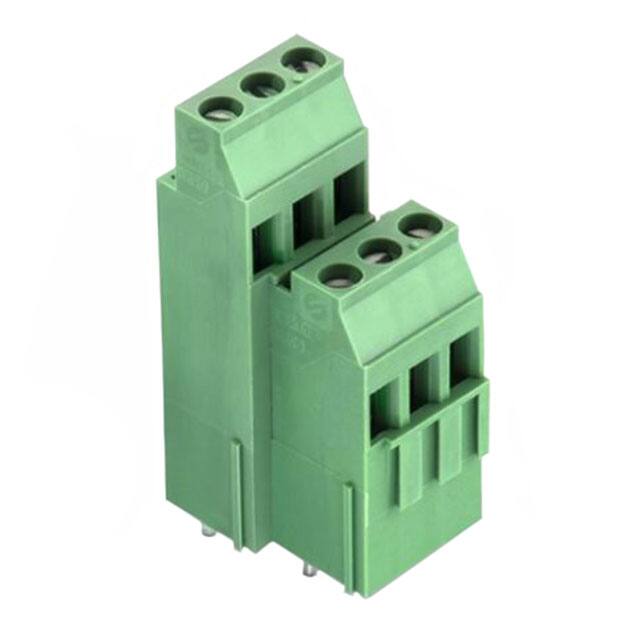

The Würth Elektronik 691234510006 is a 6-position wire-to-board terminal block from the WR-TBL series. It has a 5.08mm pitch and is arranged in two levels of 3 positions each, providing a compact 6-pin connection. The terminal block uses a screw rising cage clamp wire termination, suitable for solid and stranded wires from 12 to 30 AWG (3.31 to 0.05 mm²). The mating orientation is horizontal with the board, making it ideal for side-entry applications.
Electrical ratings include a current rating of 20A, voltage rating of 300V (UL) and 450V (VDE), with withstanding voltage of 1600V (UL) and 2500V (VDE). Contact resistance is 20 mΩ. The insulator material is PA6/66 with UL94 V-0 flammability rating, operating temperature range from -30°C to +120°C.
The terminal block is mounted via through hole technology. The overall length is 15.24mm with pin-to-pin middle spacing of 10.16mm. The screw is M3 with tightening torque of 0.5 Nm, and wire strip length is 6mm. Contact material is copper alloy with nickel plating; terminal screw is steel with zinc plating. The color is green.
This component is suitable for general electronic equipment where reliable wire-to-board connections are needed. It is RoHS3 compliant (per datasheet) and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.21 | $10.21 |
| 10+ | $8.93 | $8.93 |
| 50+ | $8.08 | $8.08 |
| 100+ | $7.22 | $7.22 |
| 500+ | $6.80 | $6.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 6 positions, arranged in 2 levels of 3 positions each.
The pitch is 5.08 mm (0.200 inches).
The current rating is 20 A.
UL voltage rating is 300 V, VDE voltage rating is 450 V.
Through hole mounting with horizontal wire entry.
Accepts solid and stranded wire from 12 to 30 AWG (3.31 to 0.05 mm²).
-30°C to +120°C.
